2.2 WFPC2 Configuration, Field-of-View, and
Resolution

---

The field-of-view and angular resolution of the wide field and planetary camera is split up as follows (see chapter 4 for more details on CCDs):

Table 2.1: Summary of Camera Format.

Camera	Pixel and CCD Format	Field-of-View	Pixel Scale	F/ratio
Wide Field	800 × 800 × 3 CCDs	2.5' × 2.5' (L-shaped)	~100 milli- arcseconds	12.9
Planetary	800 × 800 × 1 CCD	35" × 35"	~46 milli- arcseconds	28.3

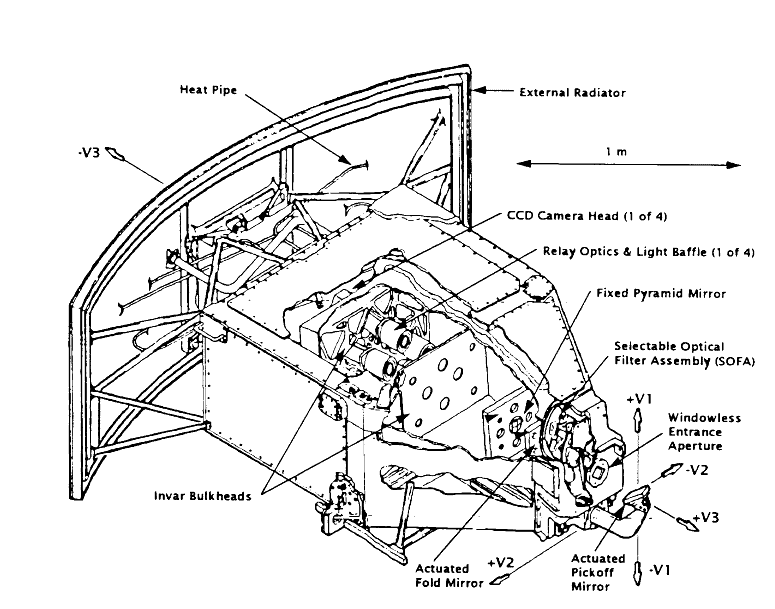

Figure 2.1: Wide Field Planetary Camera 2 Concept Illustration. The calibration channel, and pick-off mirror mechanisms are not shown.
