NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F090M

Central wavelength: 0.9036 µm

Mean wavelength: 0.9053 µm

Peak wavelength: 0.9175 µm

Wavelength range: 0.8-1.0 µm

FWHM: 0.1730 µm

Maximum throughput: 7.976%

Central pixel fraction: 0.124

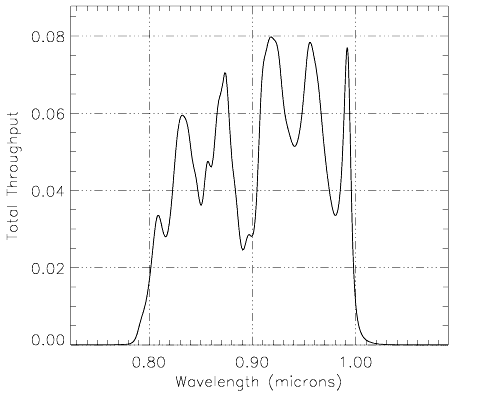

Figure A1.1: F090M Throughput

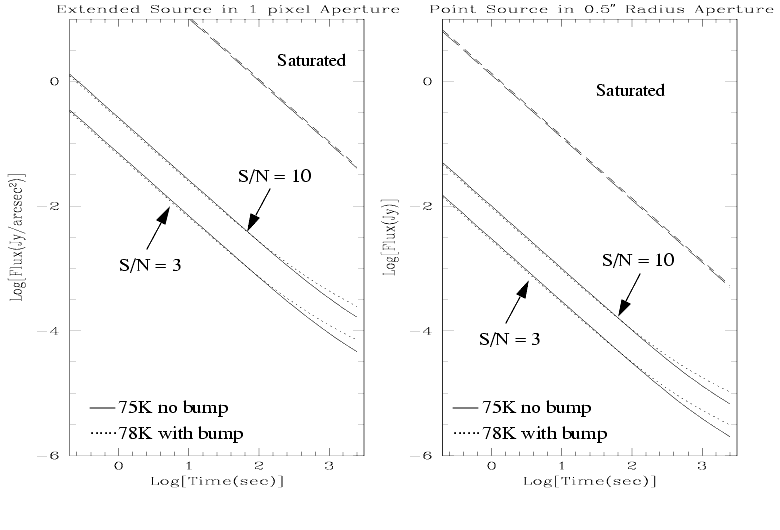

Figure A1.2: F090M Sensitivity Curves

Central wavelength: 0.9036 µm Mean wavelength: 0.9053 µm Peak wavelength: 0.9175 µm Wavelength range: 0.8-1.0 µm FWHM: 0.1730 µm Maximum throughput: 7.976% Central pixel fraction: 0.124	*Figure A1.1: F090M Throughput*
*Figure A1.2: F090M Sensitivity Curves*
