NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F095N

Notes:

[S III] line.

Central wavelength: 0.9536 µm

Mean wavelength: 0.9536 µm

Peak wavelength: 0.9564 µm

Wavelength range: 1%

FWHM: 0.0093 µm

Maximum throughput: 6.567%

Central pixel fraction: 0.114

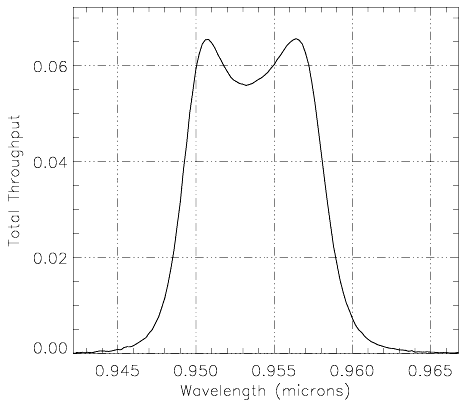

Figure A1.3: NIC1, F095N Throughput

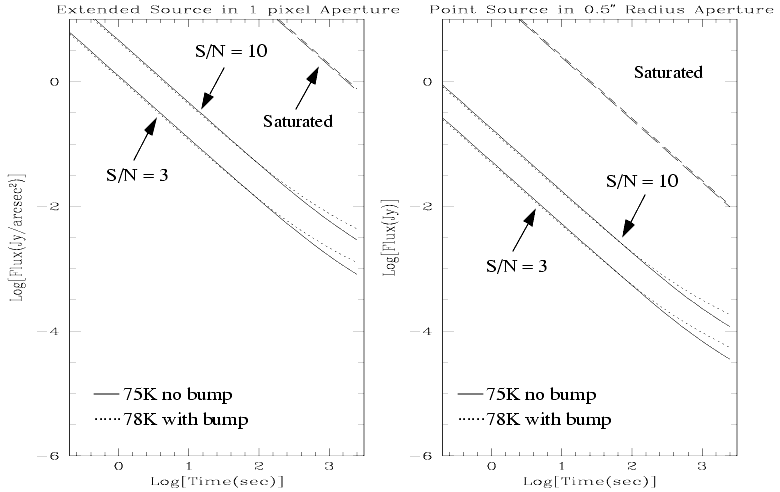

Figure A1.4: NIC1, F095N Sensitivity Curves

Notes: [S III] line. Central wavelength: 0.9536 µm Mean wavelength: 0.9536 µm Peak wavelength: 0.9564 µm Wavelength range: 1% FWHM: 0.0093 µm Maximum throughput: 6.567% Central pixel fraction: 0.114	*Figure A1.3: NIC1, F095N Throughput*
*Figure A1.4: NIC1, F095N Sensitivity Curves*
