NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F207M

Notes:

Thermal background important.

Central wavelength: 2.0820 µm

Mean wavelength: 2.0825 µm

Peak wavelength: 2.0672 µm

Wavelength range: 2.01-2.16 µm

FWHM: 0.1524 µm

Maximum throughput: 26.308%

Central pixel fraction: 0.085

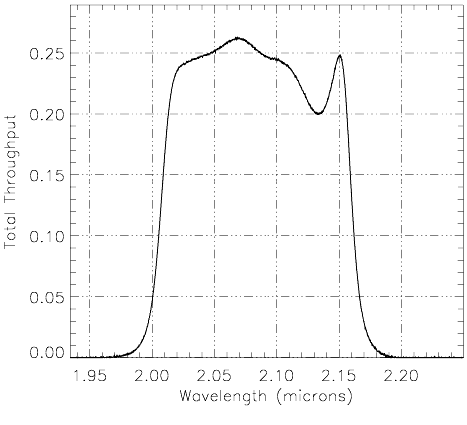

Figure A1.55: NIC2, F207M Throughput

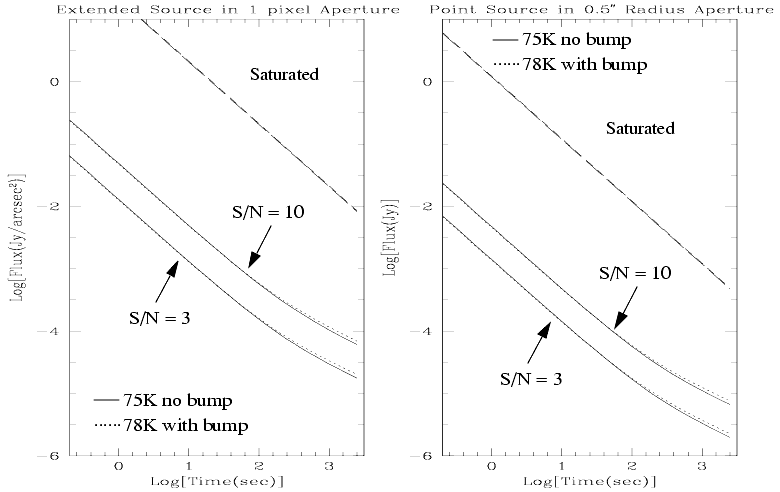

Figure A1.56: 7M Sensitivity Curves

Notes: Thermal background important. Central wavelength: 2.0820 µm Mean wavelength: 2.0825 µm Peak wavelength: 2.0672 µm Wavelength range: 2.01-2.16 µm FWHM: 0.1524 µm Maximum throughput: 26.308% Central pixel fraction: 0.085	*Figure A1.55: NIC2, F207M Throughput*
*Figure A1.56: 7M Sensitivity Curves*
