NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F205W

Notes:

Thermal background important.

Central wavelength: 2.0650 µm

Mean wavelength: 2.0731 µm

Peak wavelength: 2.3154 µm

Wavelength range: 1.75-2.35 µm

FWHM: 0.5991 µm

Maximum throughput: 35.683%

Central pixel fraction: 0.090

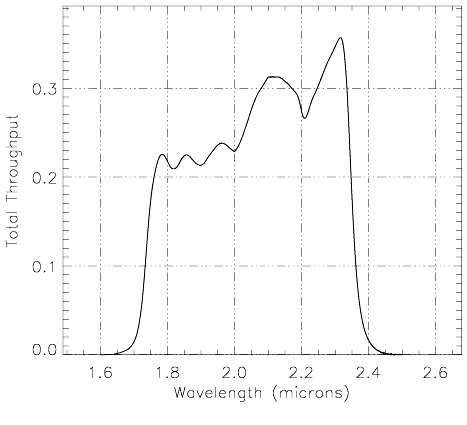

Figure A1.53: NIC2, F205W Throughput

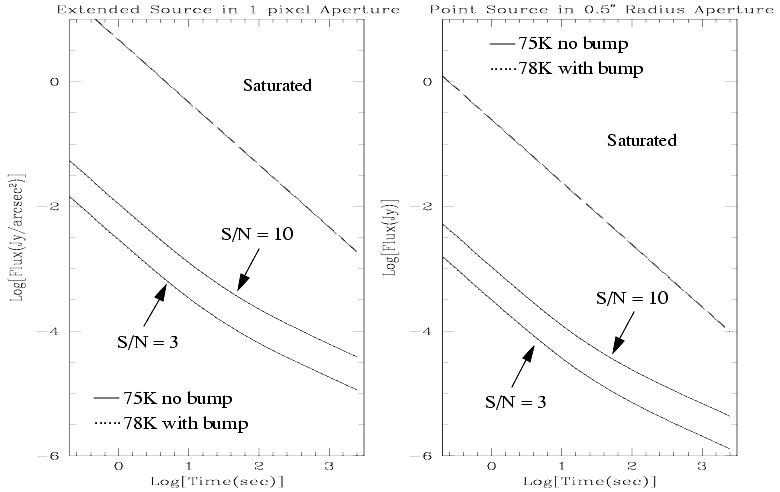

Figure A1.54: NIC2, F205W Sensitivity Curves

Notes: Thermal background important. Central wavelength: 2.0650 µm Mean wavelength: 2.0731 µm Peak wavelength: 2.3154 µm Wavelength range: 1.75-2.35 µm FWHM: 0.5991 µm Maximum throughput: 35.683% Central pixel fraction: 0.090	*Figure A1.53: NIC2, F205W Throughput*
*Figure A1.54: NIC2, F205W Sensitivity Curves*
