NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F215N

Notes:

N₂ + Brackett continuum.

Thermal background important.

Central wavelength: 2.1487 µm

Mean wavelength: 2.1487 µm

Peak wavelength: 2.1562 µm

Wavelength range: 1% µm

FWHM: 0.0203 µm

Maximum throughput: 26.242%

Central pixel fraction: 0.081

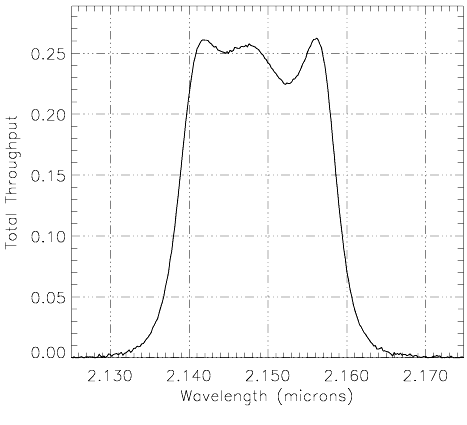

Figure A1.59: NIC2, F215N Throughput

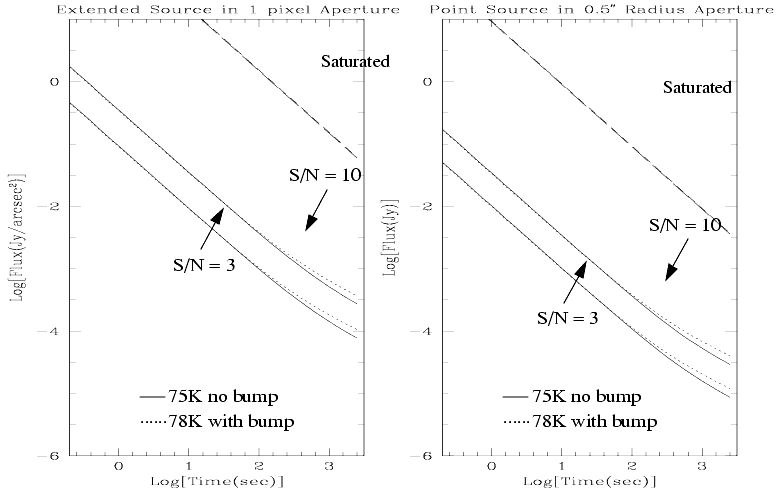

Figure A1.60: NIC2, F215N Sensitivity Curves

Notes: N₂ + Brackett continuum. Thermal background important. Central wavelength: 2.1487 µm Mean wavelength: 2.1487 µm Peak wavelength: 2.1562 µm Wavelength range: 1% µm FWHM: 0.0203 µm Maximum throughput: 26.242% Central pixel fraction: 0.081	*Figure A1.59: NIC2, F215N Throughput*
*Figure A1.60: NIC2, F215N Sensitivity Curves*
