NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F216N

Notes:

Brackett line.

Thermal background important.

Central wavelength: 2.1641 µm

Mean wavelength: 2.1641 µm

Peak wavelength: 2.1668 µm

Wavelength range: 1%

FWHM: 0.0212 µm

Maximum throughput: 27.222%

Central pixel fraction: 0.079

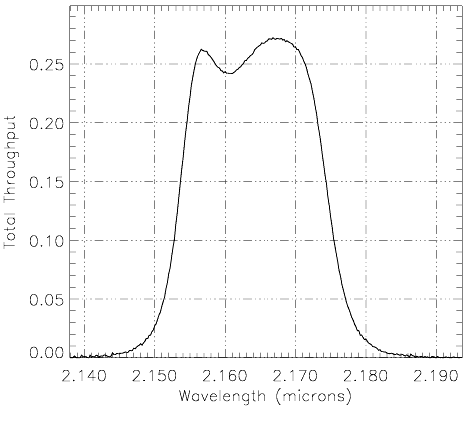

Figure A1.61: NIC2, F216N Throughput

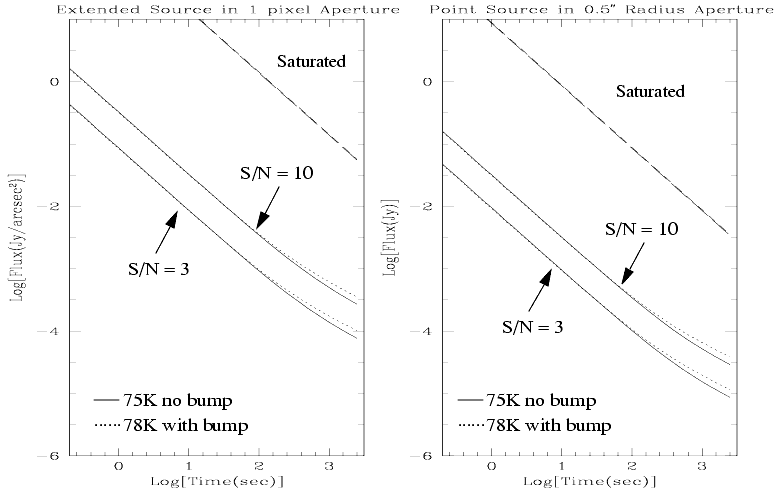

Figure A1.62: IC2, F216N Sensitivity Curves

Notes: Brackett line. Thermal background important. Central wavelength: 2.1641 µm Mean wavelength: 2.1641 µm Peak wavelength: 2.1668 µm Wavelength range: 1% FWHM: 0.0212 µm Maximum throughput: 27.222% Central pixel fraction: 0.079	*Figure A1.61: NIC2, F216N Throughput*
*Figure A1.62: IC2, F216N Sensitivity Curves*
