NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F200N

Notes:

[Si VI] continuum.

Thermal background important.

Central wavelength: 1.9975 µm

Mean wavelength: 1.9975 µm

Peak wavelength: 2.0022 µm

Wavelength range: 1%

FWHM: 0.0209 µm

Maximum throughput: 24.964%

Central pixel fraction: 0.418

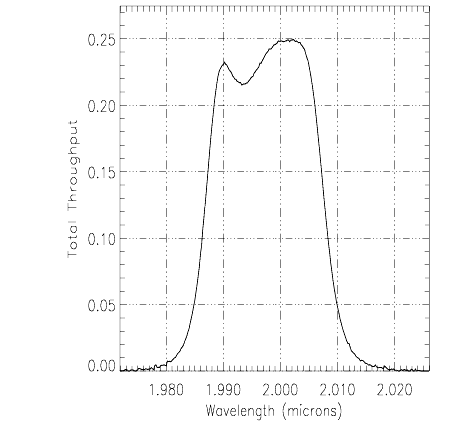

Figure A1.91: NIC3, F200N Throughput

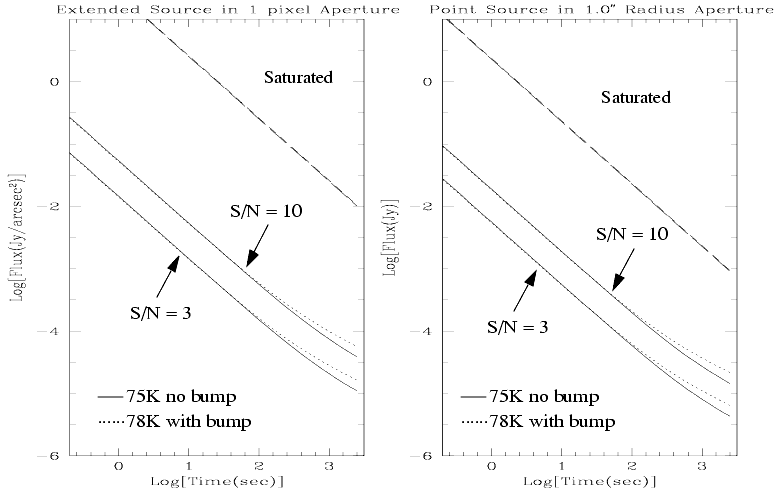

Figure A1.92: NIC3, F200N Sensitivity Curves

Notes: [Si VI] continuum. Thermal background important. Central wavelength: 1.9975 µm Mean wavelength: 1.9975 µm Peak wavelength: 2.0022 µm Wavelength range: 1% FWHM: 0.0209 µm Maximum throughput: 24.964% Central pixel fraction: 0.418	*Figure A1.91: NIC3, F200N Throughput*
*Figure A1.92: NIC3, F200N Sensitivity Curves*
