NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F196N

Notes:

[Si VI].

Thermal background important.

Central wavelength: 1.9639 µm

Mean wavelength: 1.9639 µm

Peak wavelength: 1.9698 µm

Wavelength range: 1%

FWHM: 0.0190 µm

Maximum throughput: 25.742%

Central pixel fraction: 0.423

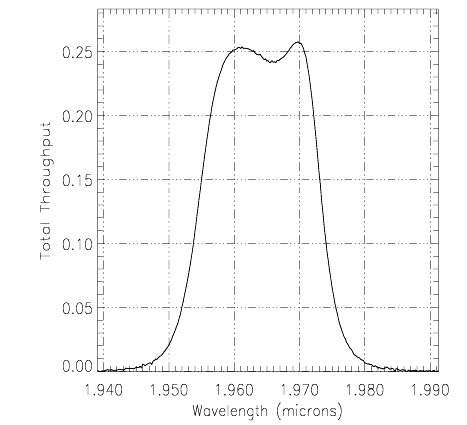

Figure A1.89: NIC3, F196N Throughput

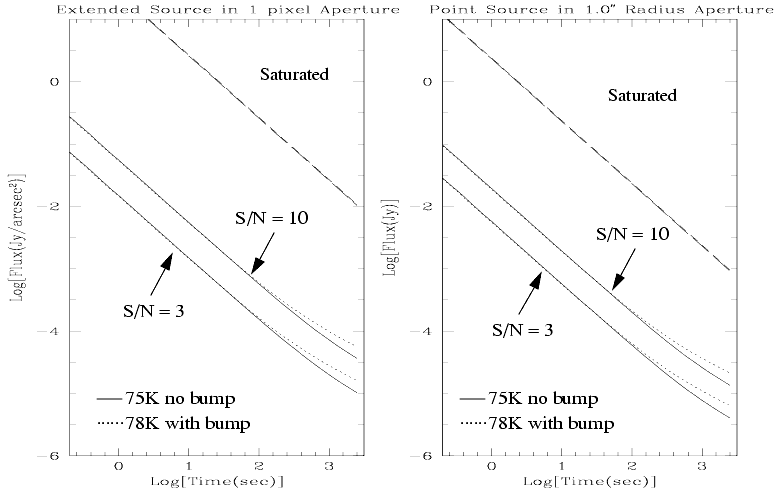

Figure A1.90: NIC3, F196N Sensitivity Curves

Notes: [Si VI]. Thermal background important. Central wavelength: 1.9639 µm Mean wavelength: 1.9639 µm Peak wavelength: 1.9698 µm Wavelength range: 1% FWHM: 0.0190 µm Maximum throughput: 25.742% Central pixel fraction: 0.423	*Figure A1.89: NIC3, F196N Throughput*
*Figure A1.90: NIC3, F196N Sensitivity Curves*
