NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F240M

Notes:

CO band.

Thermal background important.

Central wavelength: 2.3961 µm

Mean wavelength: 2.3968 µm

Peak wavelength: 2.4130 µm

Wavelength range: 2.3-2.5 µm

FWHM: 0.1950 µm

Maximum throughput: 32.617%

Central pixel fraction: 0.349

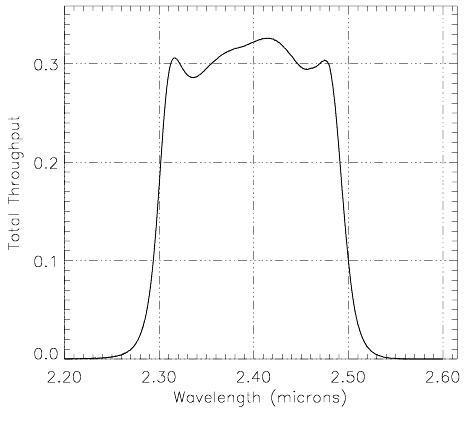

Figure A1.99: NIC3, F240M Throughput

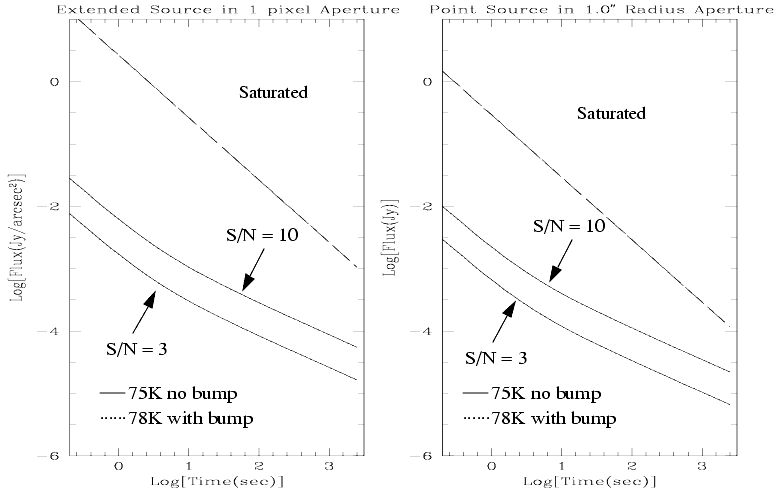

Figure A1.100: NIC3, F240M Sensitivity Curves

Notes: CO band. Thermal background important. Central wavelength: 2.3961 µm Mean wavelength: 2.3968 µm Peak wavelength: 2.4130 µm Wavelength range: 2.3-2.5 µm FWHM: 0.1950 µm Maximum throughput: 32.617% Central pixel fraction: 0.349	*Figure A1.99: NIC3, F240M Throughput*
*Figure A1.100: NIC3, F240M Sensitivity Curves*
