NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F222M

Notes:

CO continuum.

Thermal background important.

See also Camera 2, Filter F222M.

Central wavelength: 2.2178 µm

Mean wavelength: 2.2183 µm

Peak wavelength: 2.1866 µm

Wavelength range: 2.15-2.28 µm

FWHM: 0.1453 µm

Maximum throughput: 26.682%

Central pixel fraction: 0.380

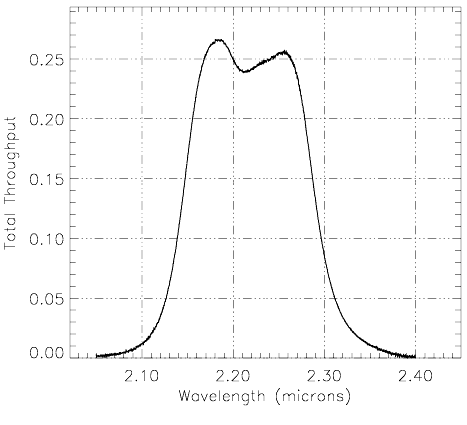

Figure A1.97: NIC3, F222M Throughput

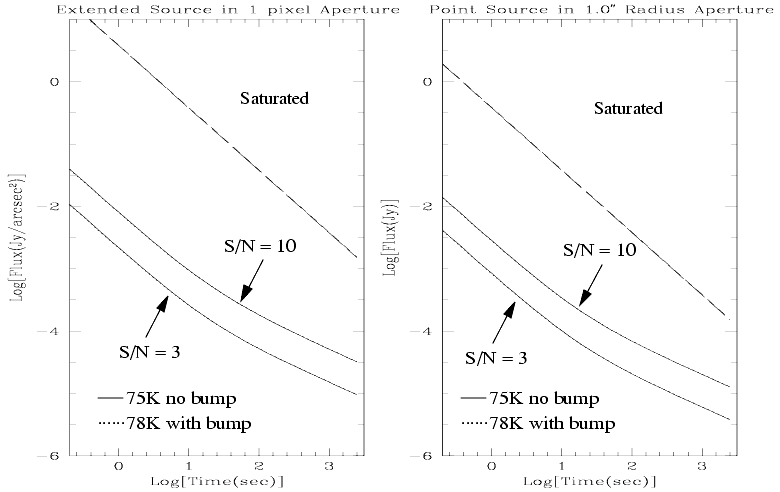

Figure A1.98: NIC3, F222M Sensitivity Curves

Notes: CO continuum. Thermal background important. See also Camera 2, Filter F222M. Central wavelength: 2.2178 µm Mean wavelength: 2.2183 µm Peak wavelength: 2.1866 µm Wavelength range: 2.15-2.28 µm FWHM: 0.1453 µm Maximum throughput: 26.682% Central pixel fraction: 0.380	*Figure A1.97: NIC3, F222M Throughput*
*Figure A1.98: NIC3, F222M Sensitivity Curves*
