Examples
The next few pages show some selected examples of how the patterns work on astronomical observations

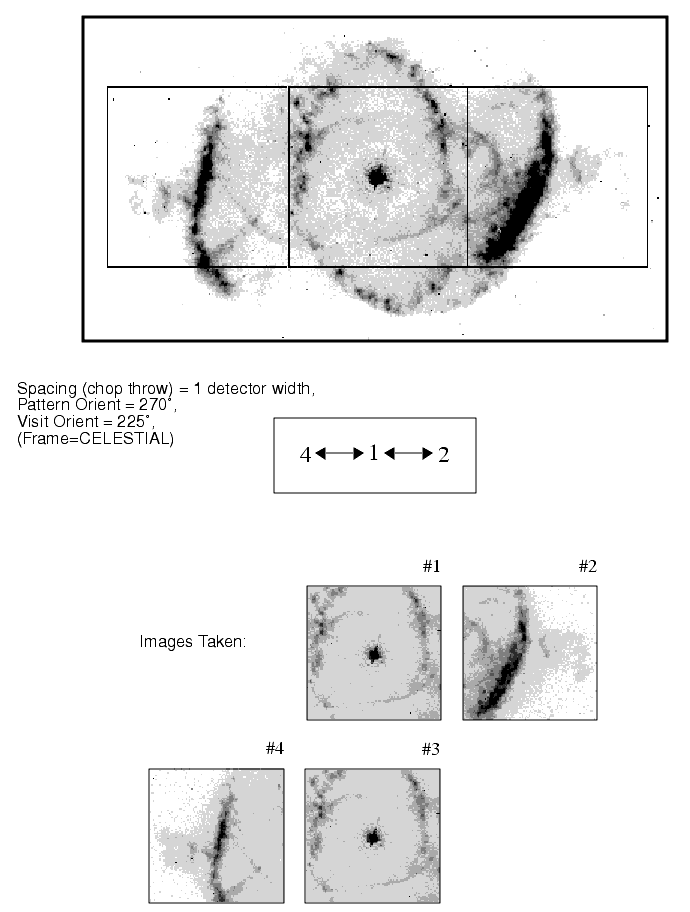

Figure 11.7: NIC-TWO-SKY-CHOP pattern.

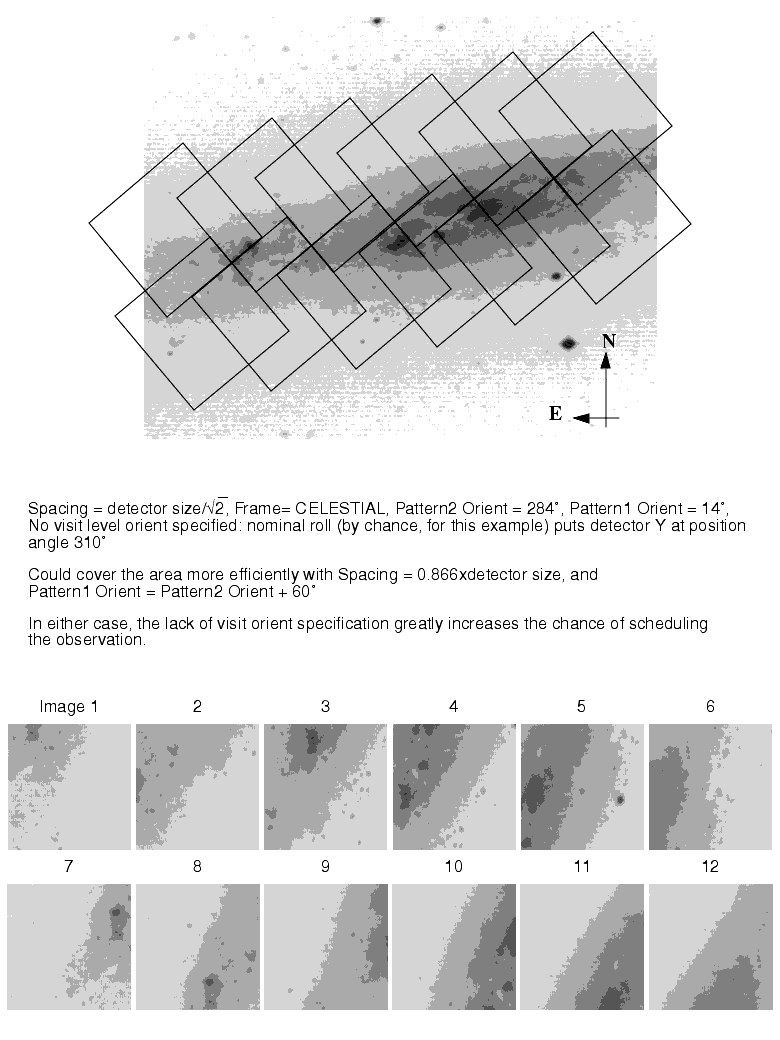

Figure 11.8: NIC-MAP Pattern
|
