WFPC2 Instrument Handbook for Cycle 10

Filter Passbands, with and w/out Total System

---

In this Appendix we give two plots for each filter -- one for the filter in isolation (left panel), and for the filter together with all other system elements (HST and WFPC2 optics and WF3 CCD; right panel). Quantities labeled on the plots are defined in System Throughput.

Note that deviates from _p and <> by progressively larger amounts for the wider filters, which is simply a consequence of the way in which is defined.

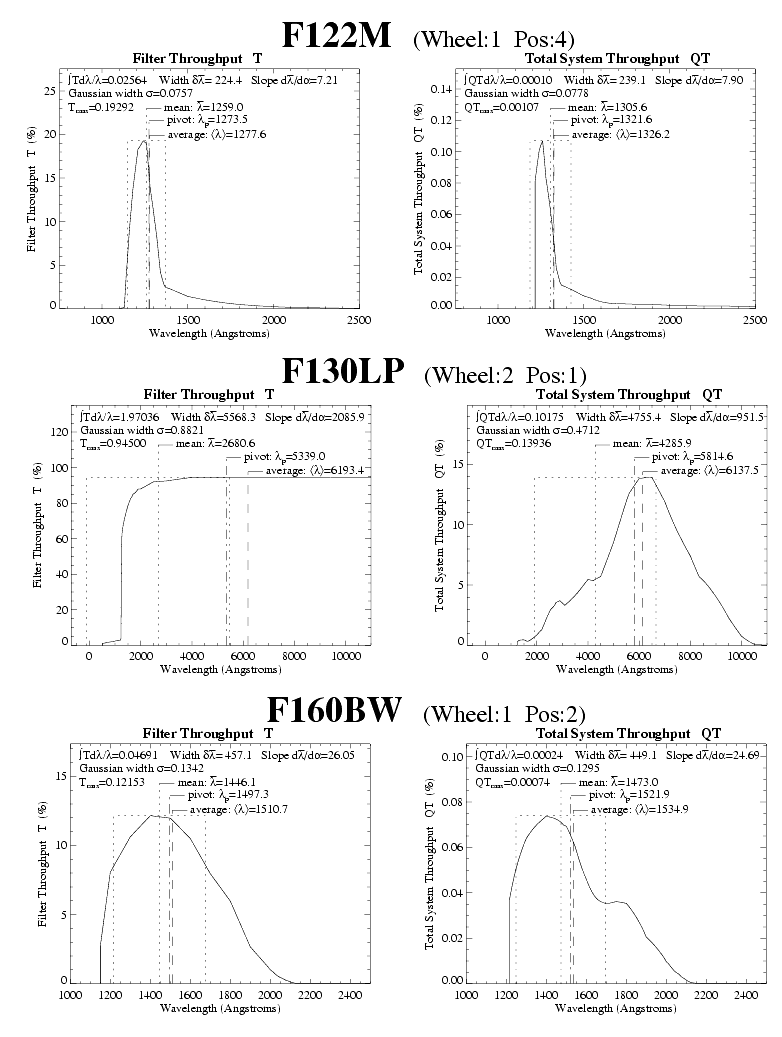

F122M, F130LP, F160BW

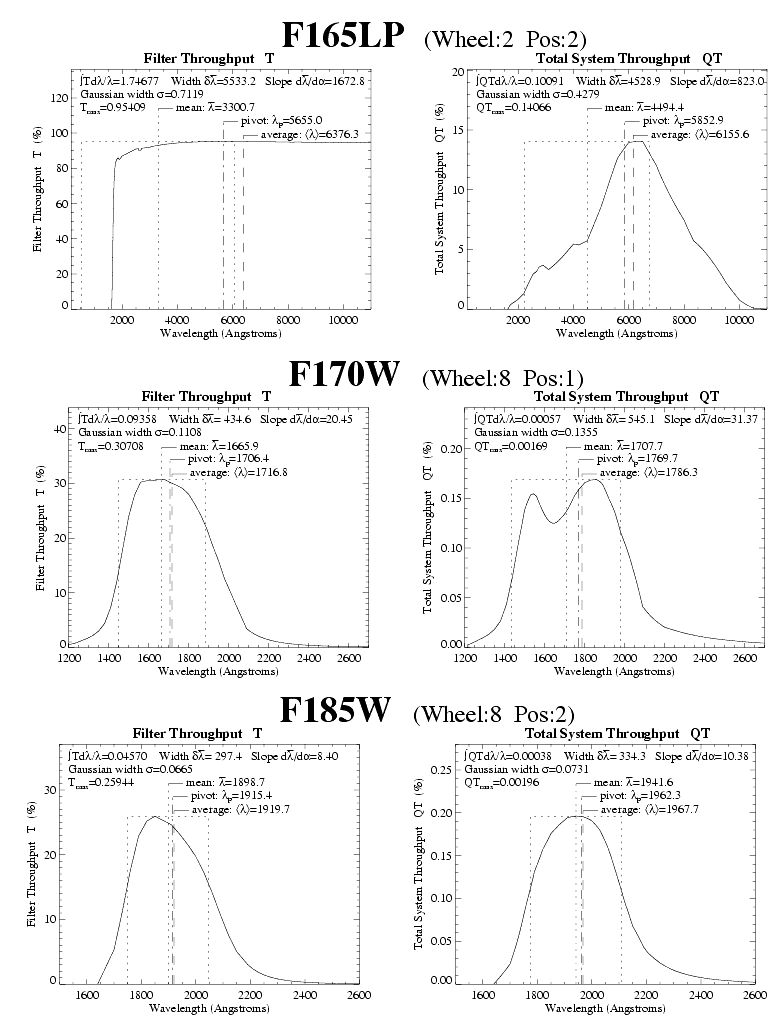

F165LP, F170W, F185W

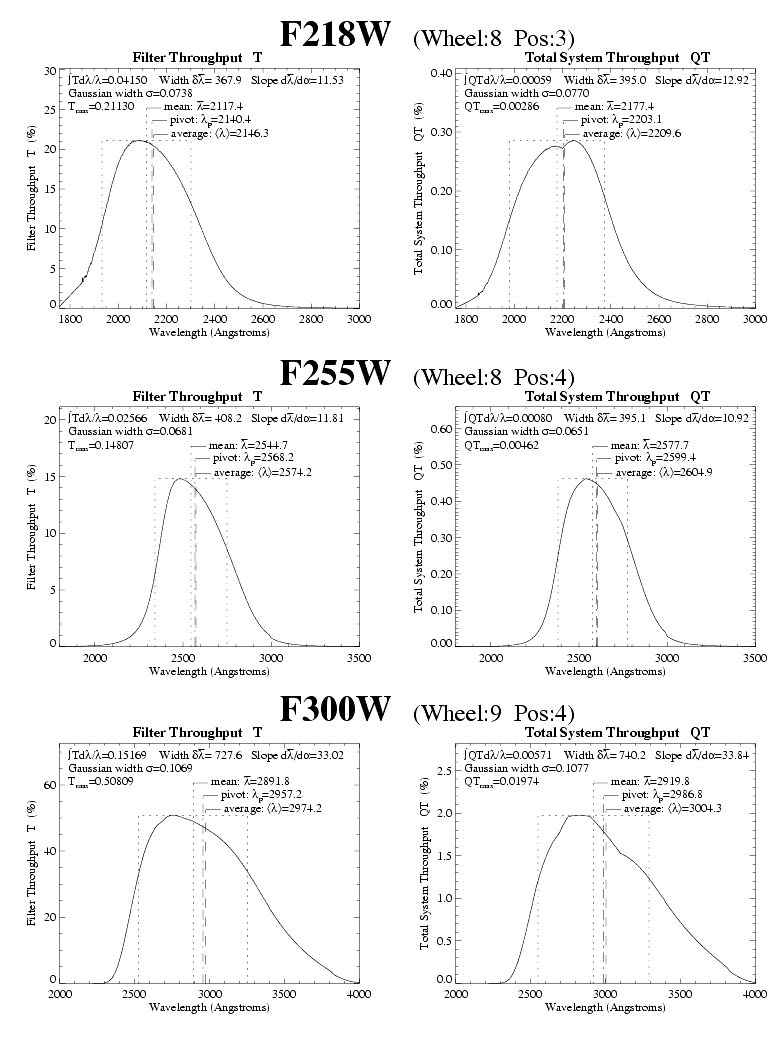

F218W, F255W, F300W

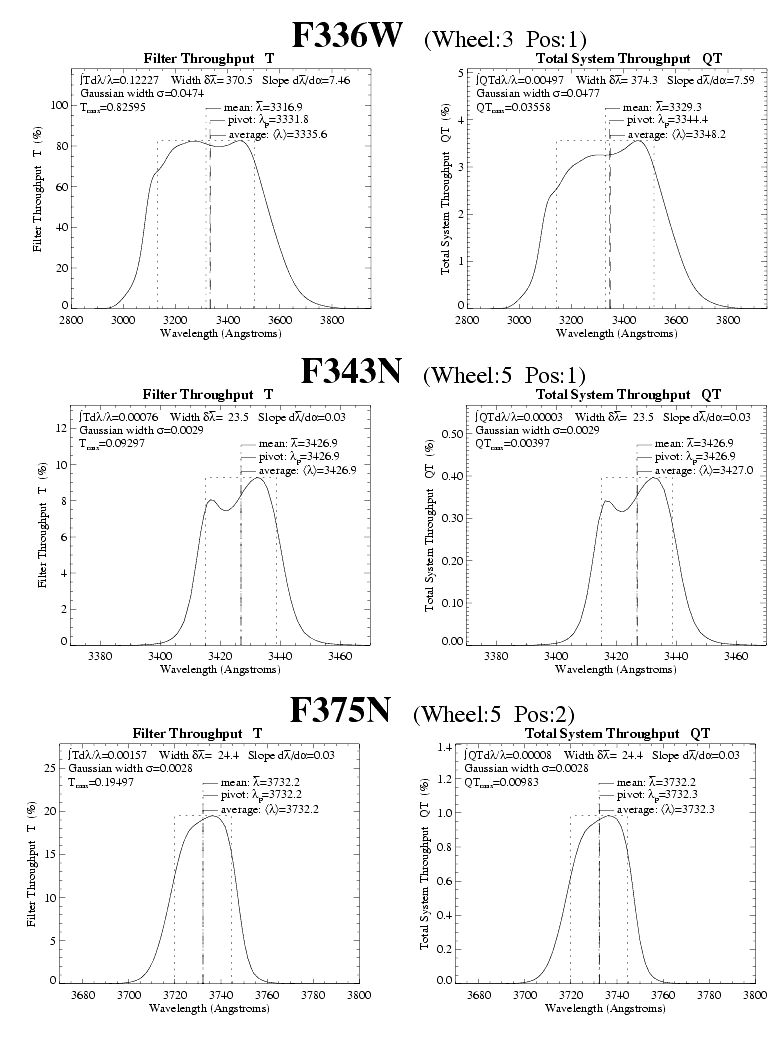

F336W, F343N, F375N

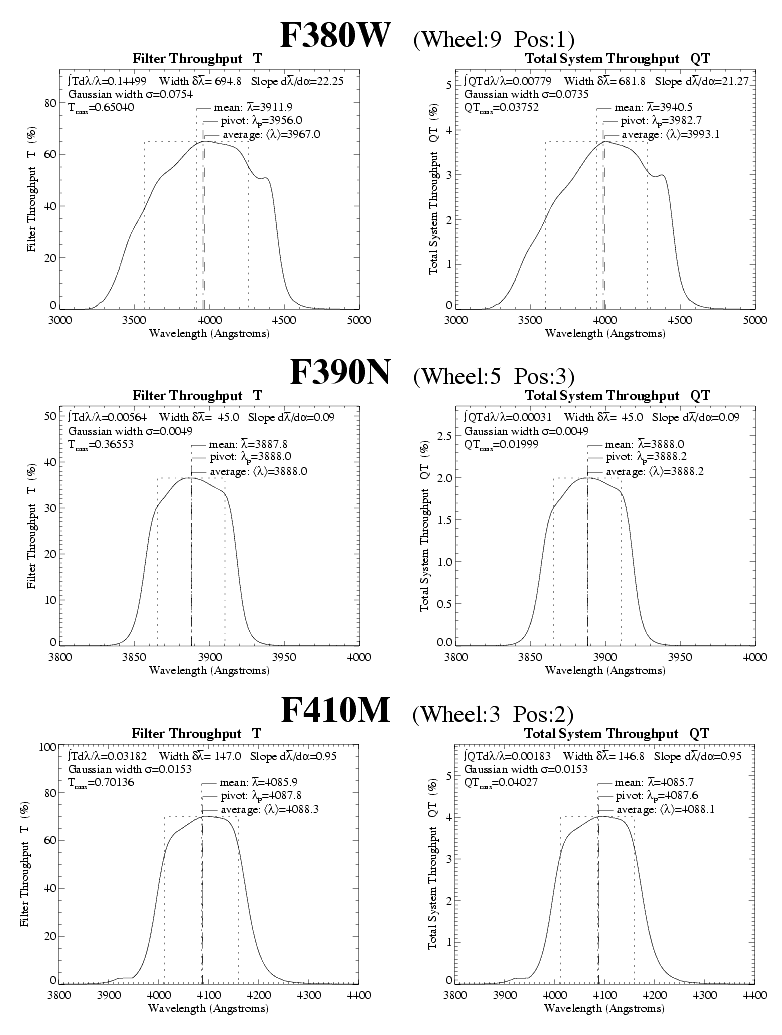

F380W, F390N, F410M

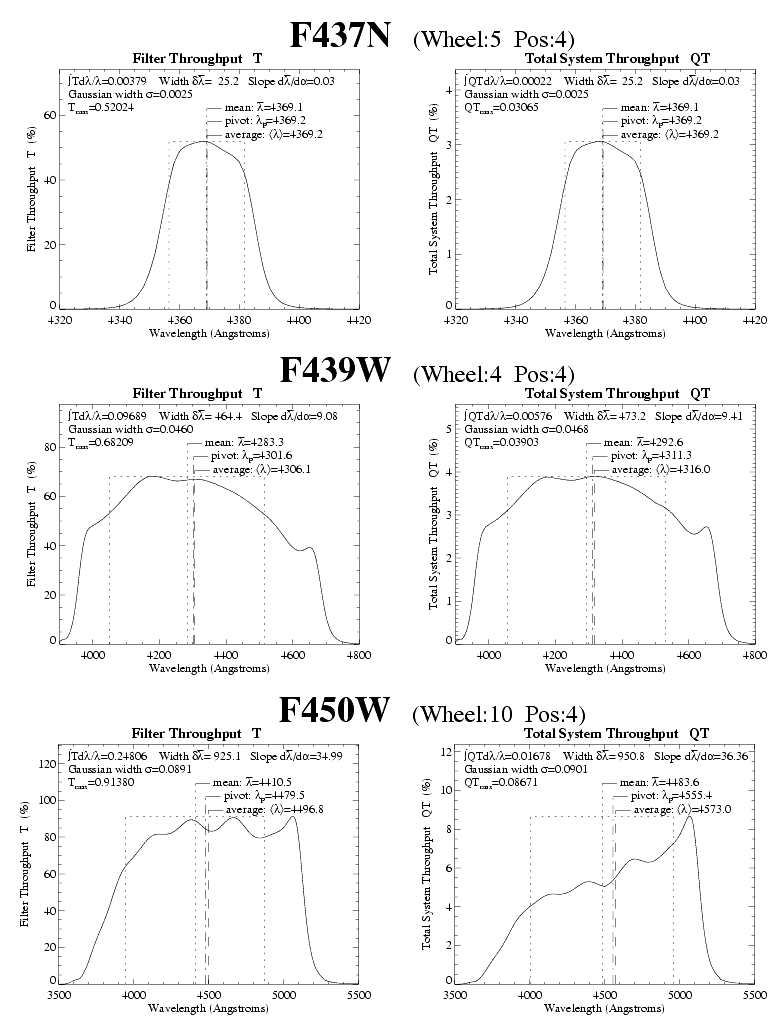

F437N, F439W, F450W

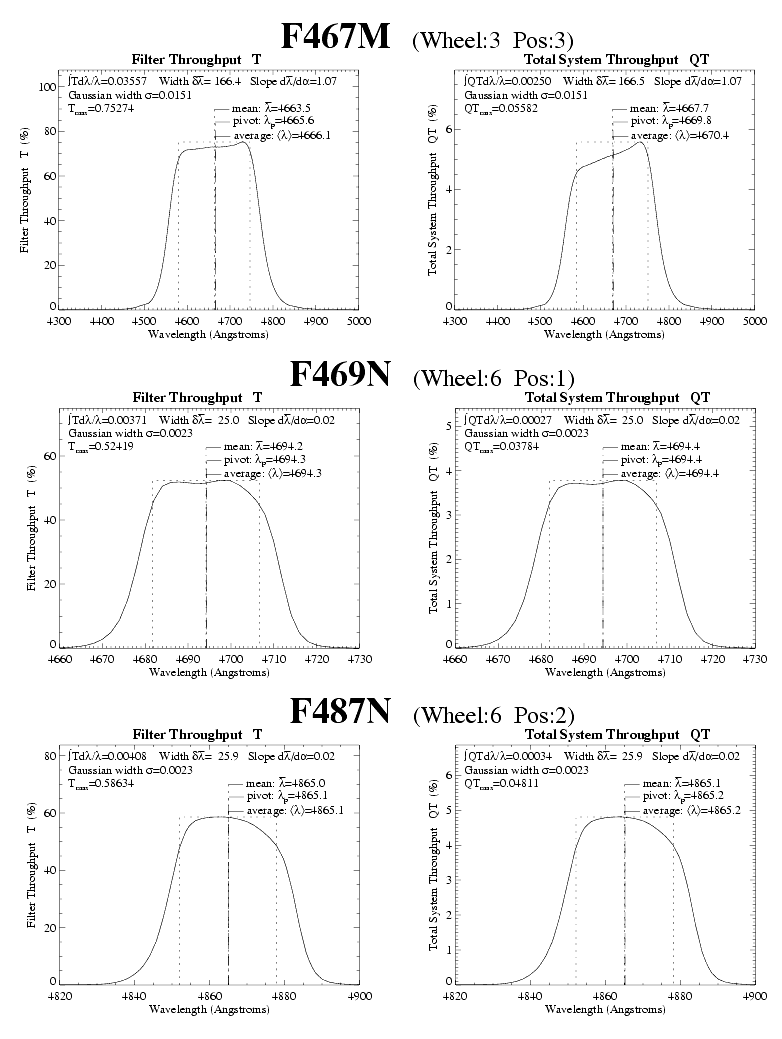

F467M, F469N, F487N

F502N, F547M, F555W

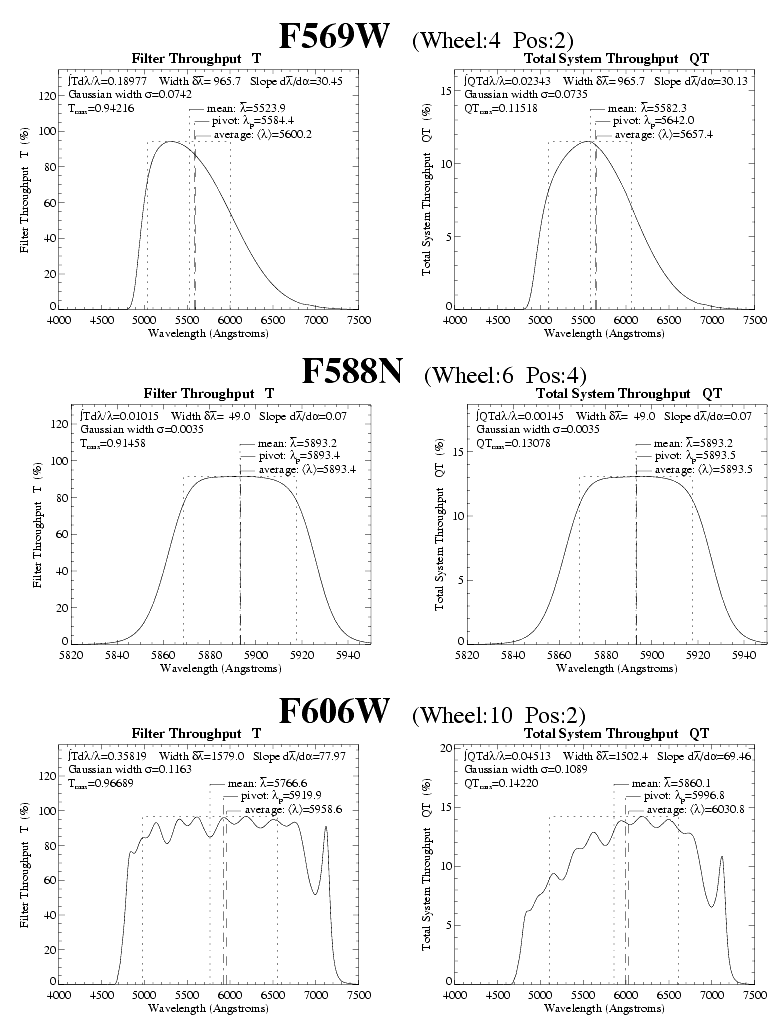

F569W, F588N, F606W

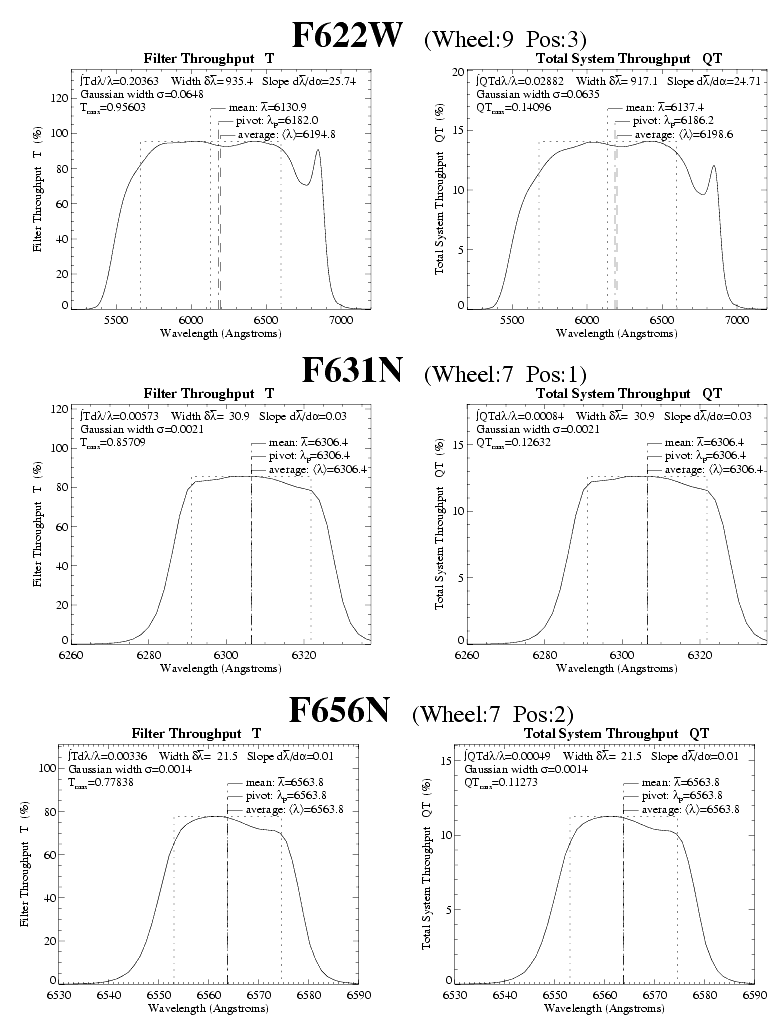

F622W, F631N, F656N

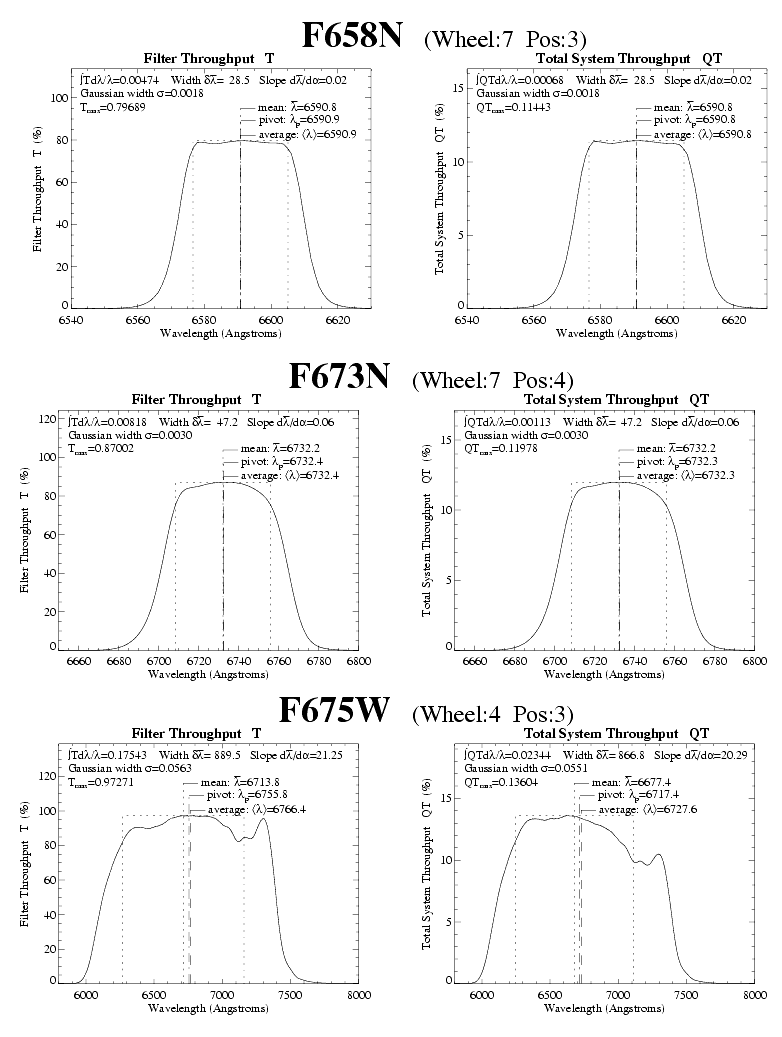

F658N, F673N, F675W

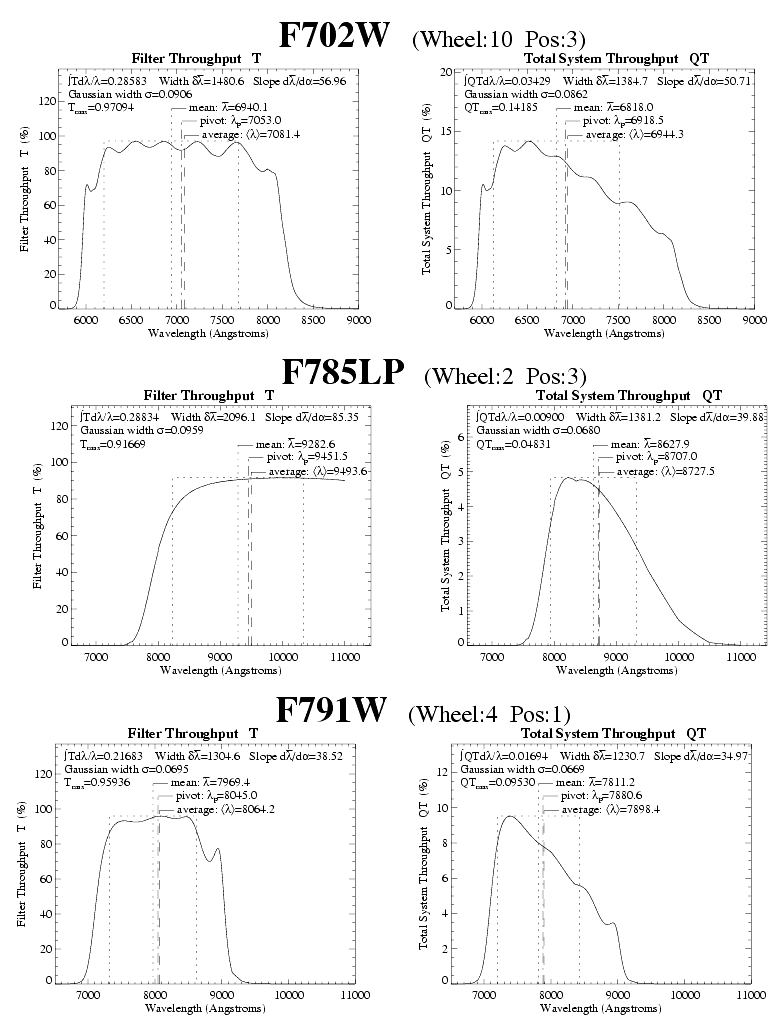

F702W, F785LP, F791W

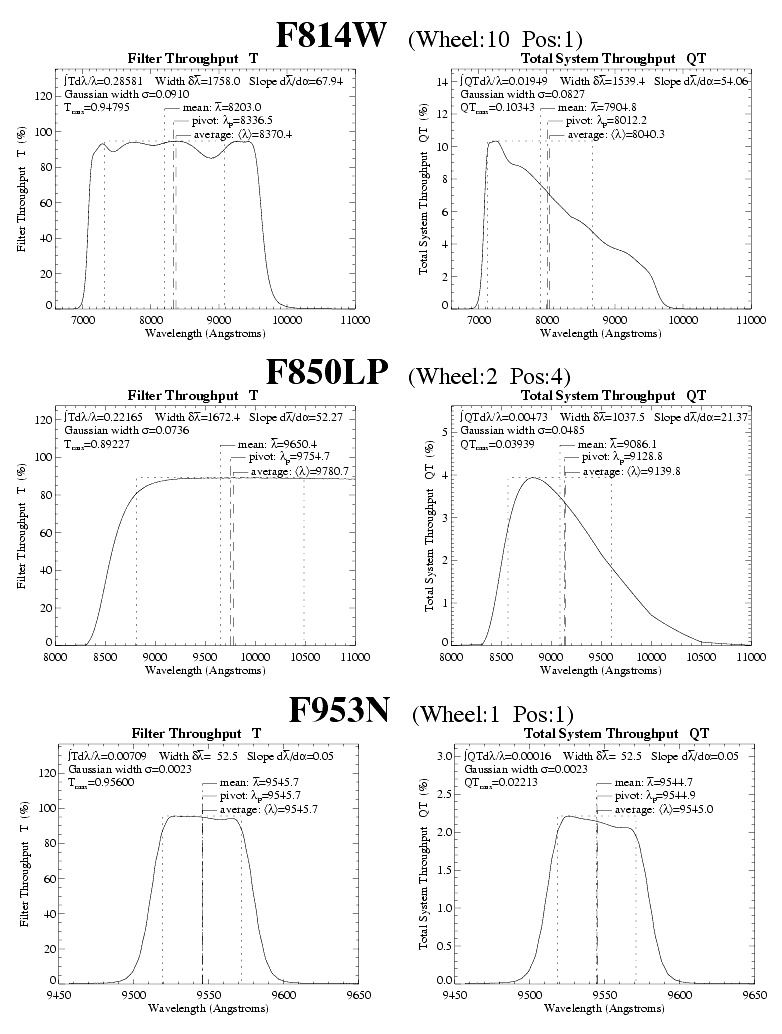

F814W, F850LP, F953N

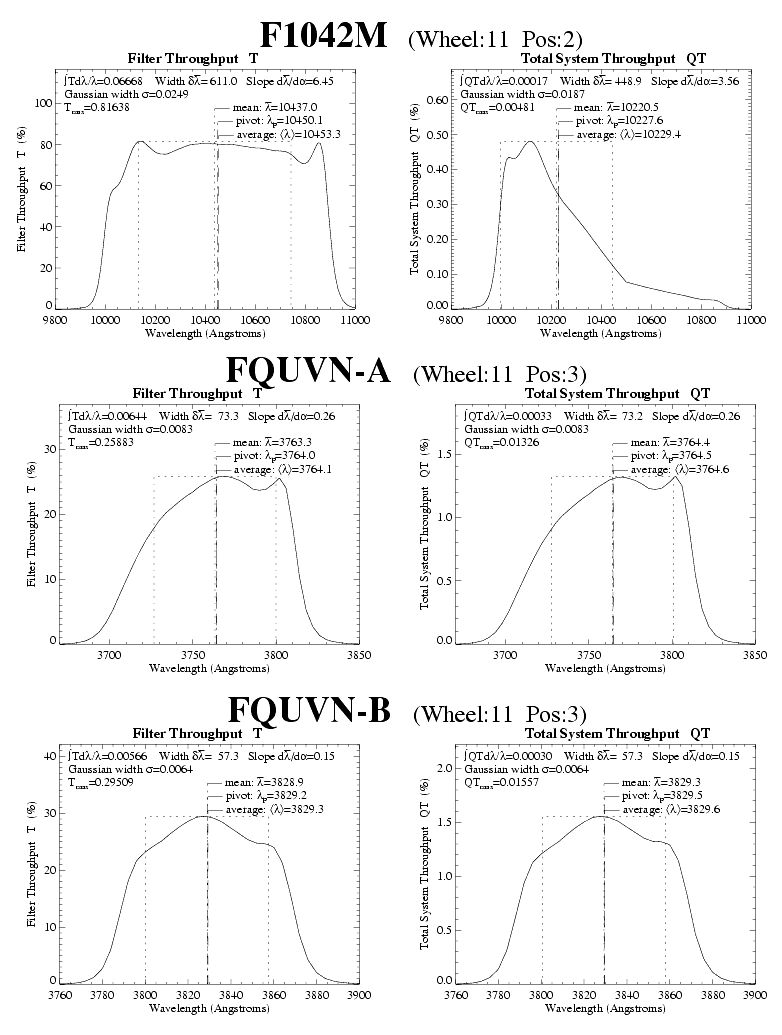

F1042M, FQUVN-A, FQUVN-B

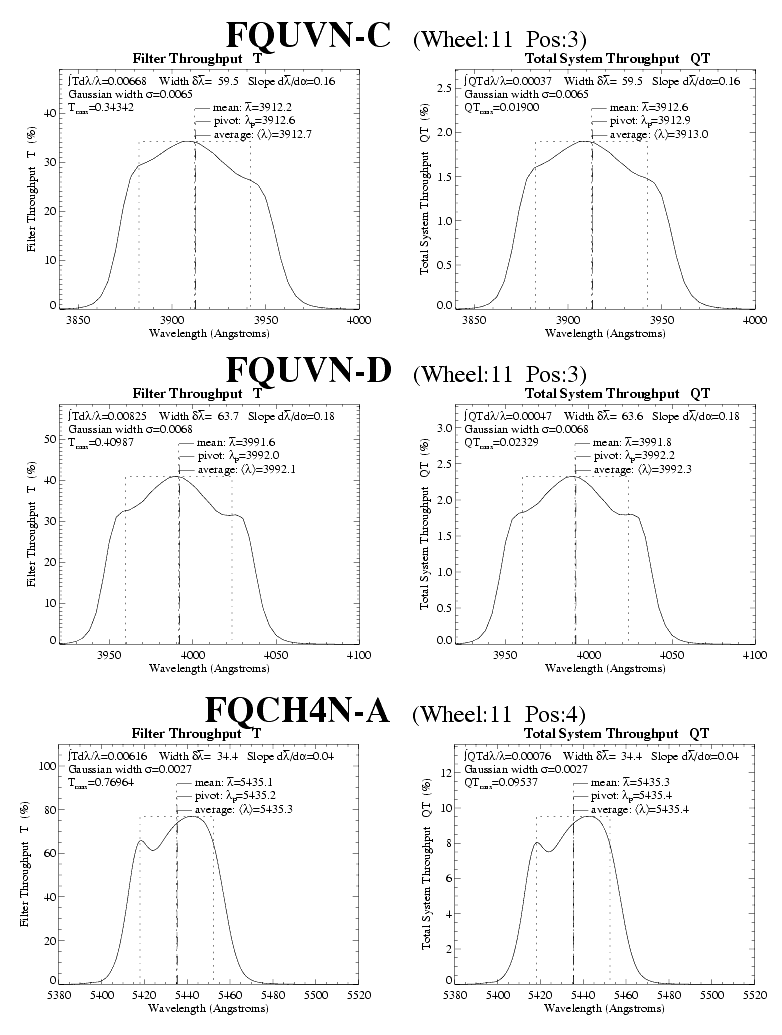

FQUVN-C, FQUVN-D, FQCH4N-A

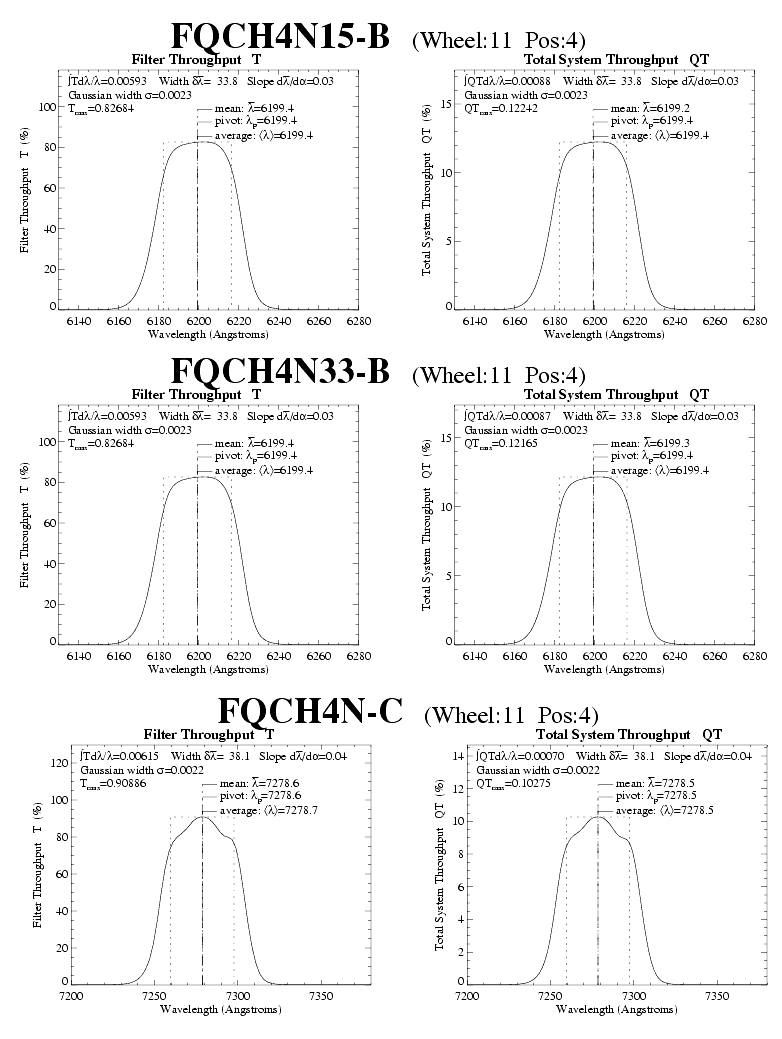

FQCH4N15-B, FQCH4N33-B, FQCH4N-C

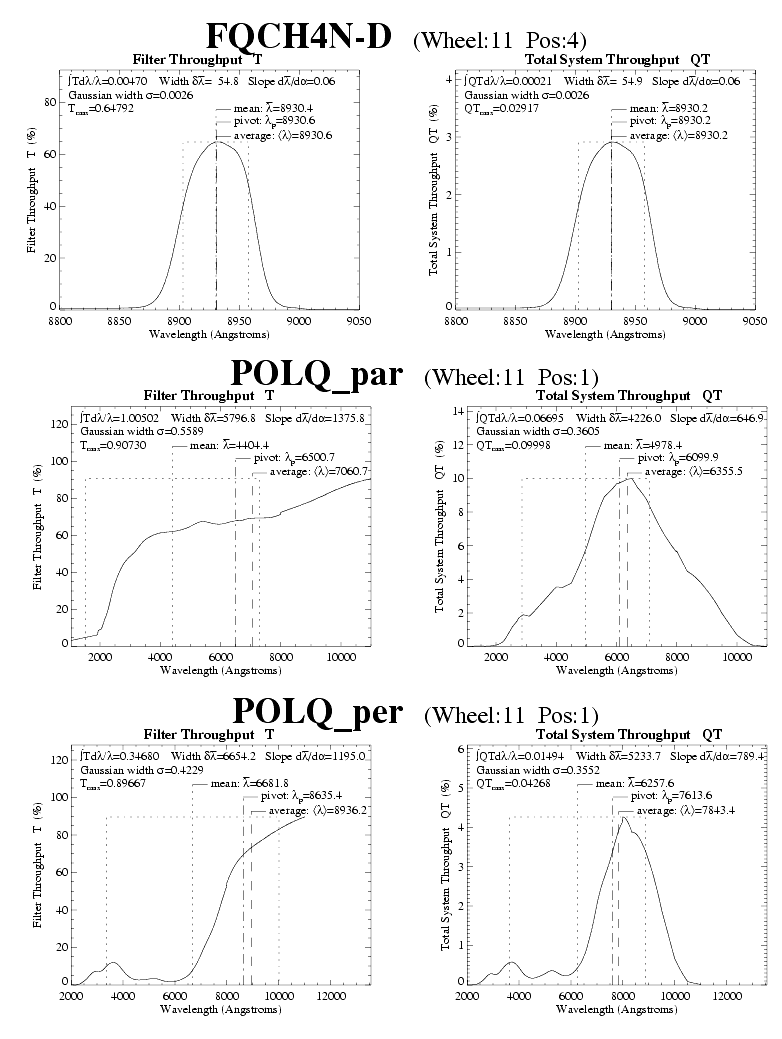

FQCH4N-D, Parallel and Perpendicular Polarizers
