NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F145M

Notes:

H₂O band.

Central wavelength: 1.4551 µm

Mean wavelength: 1.4562 µm

Peak wavelength: 1.5100 µm

Wavelength range: 1.35-1.55 µm

FWHM: 0.1962 µm

Maximum throughput: 18.833%

Central pixel fraction: 0.058

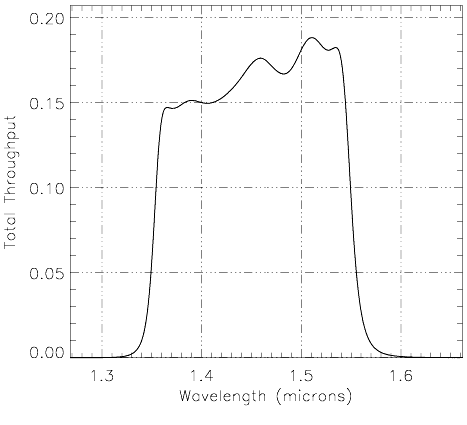

Figure A1.17: NIC1, F145M Throughput

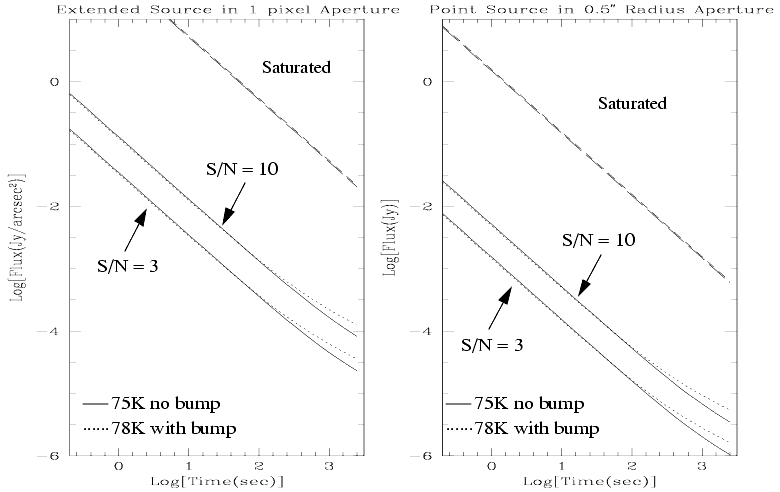

Figure A1.18: NIC1, F145M Sensitivity Curves

Notes: H₂O band. Central wavelength: 1.4551 µm Mean wavelength: 1.4562 µm Peak wavelength: 1.5100 µm Wavelength range: 1.35-1.55 µm FWHM: 0.1962 µm Maximum throughput: 18.833% Central pixel fraction: 0.058	*Figure A1.17: NIC1, F145M Throughput*
*Figure A1.18: NIC1, F145M Sensitivity Curves*
