NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F140W

Central wavelength: 1.4303 µm

Mean wavelength: 1.4498 µm

Peak wavelength: 1.7771 µm

Wavelength range: 1.0-1.8 µm

FWHM: 0.7265 µm

Maximum throughput: 23.82%

Central pixel fraction: 0.066

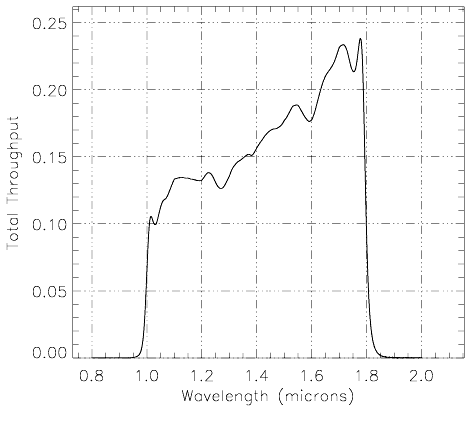

Figure A1.15: NIC1, F140W Throughput

Figure A1.16: NIC1, F140W Sensitivity Curves

Central wavelength: 1.4303 µm Mean wavelength: 1.4498 µm Peak wavelength: 1.7771 µm Wavelength range: 1.0-1.8 µm FWHM: 0.7265 µm Maximum throughput: 23.82% Central pixel fraction: 0.066	*Figure A1.15: NIC1, F140W Throughput*
*Figure A1.16: NIC1, F140W Sensitivity Curves*
