NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F160W

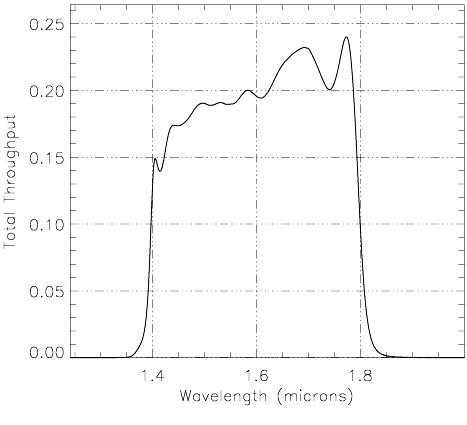

Notes: Minimum background. See also Camera 2, Filter F160W and Camera 3, Filter F160W. Central wavelength: 1.6046 µm Mean wavelength: 1.6089 µm Peak wavelength: 1.7725 µm Wavelength range: 1.4-1.8 µm FWHM: 0.3983 µm Maximum throughput: 23.997% Central pixel fraction: 0.049	Figure A1.19: NIC1, F160W Throughput

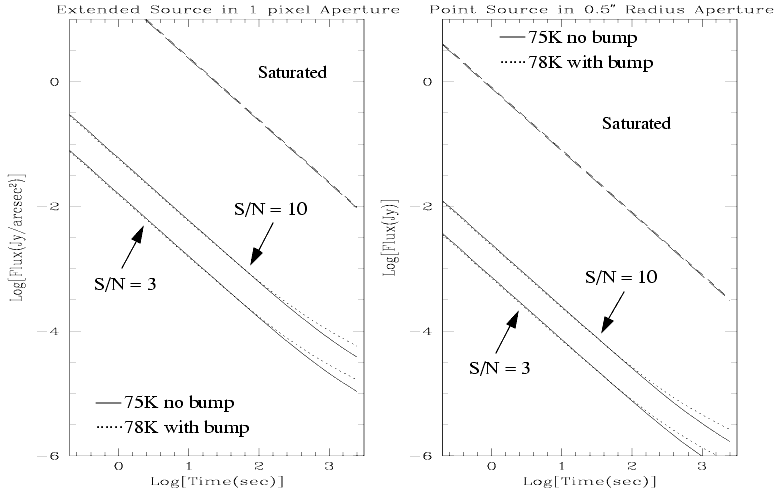

Figure A1.20: 160W Sensitivity Curves



---
