NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F165M

Notes:

H₂O continuum.

See also Camera 2, Filter F165M.

Central wavelength: 1.6483 µm

Mean wavelength: 1.6493 µm

Peak wavelength: 1.7110 µm

Wavelength range: 1.54-1.74 µm

FWHM: 0.1984 µm

Maximum throughput: 23.478%

Central pixel fraction: 0.046

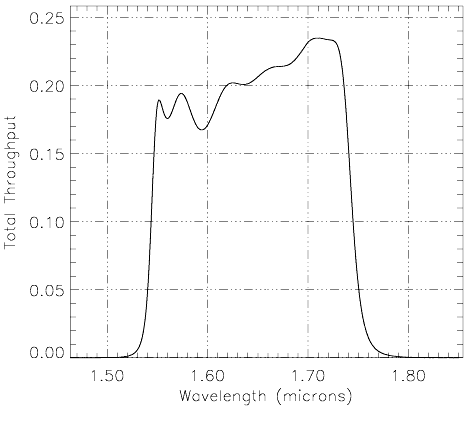

Figure A1.23: NIC1, F165M Throughput

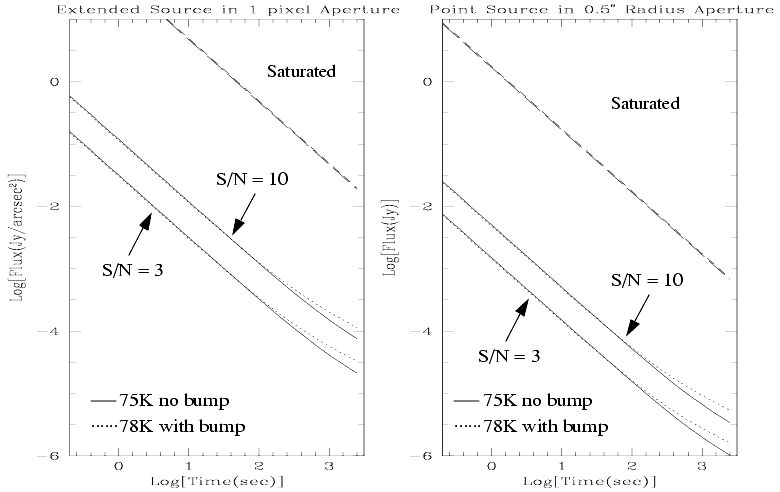

Figure A1.24: NIC1, F165M Sensitivity Curves

Notes: H₂O continuum. See also Camera 2, Filter F165M. Central wavelength: 1.6483 µm Mean wavelength: 1.6493 µm Peak wavelength: 1.7110 µm Wavelength range: 1.54-1.74 µm FWHM: 0.1984 µm Maximum throughput: 23.478% Central pixel fraction: 0.046	*Figure A1.23: NIC1, F165M Throughput*
*Figure A1.24: NIC1, F165M Sensitivity Curves*
