NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F166N

Notes:

[Fe II] continuum.

See also Camera 3, Filter F166N.

Central wavelength: 1.6607 µm

Mean wavelength: 1.6607 µm

Peak wavelength: 1.6624 µm

Wavelength range: 1% µm

FWHM: 0.0170 µm

Maximum throughput: 20.987%

Central pixel fraction: 0.045

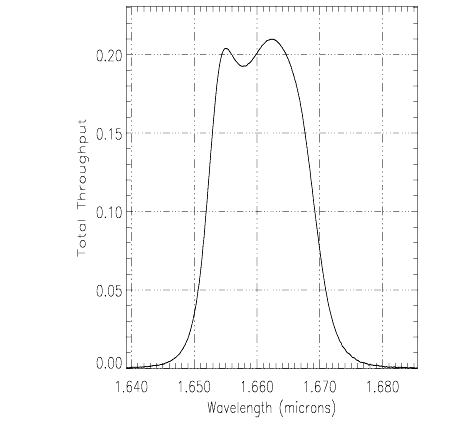

Figure A1.25: NIC1, F166N Throughput

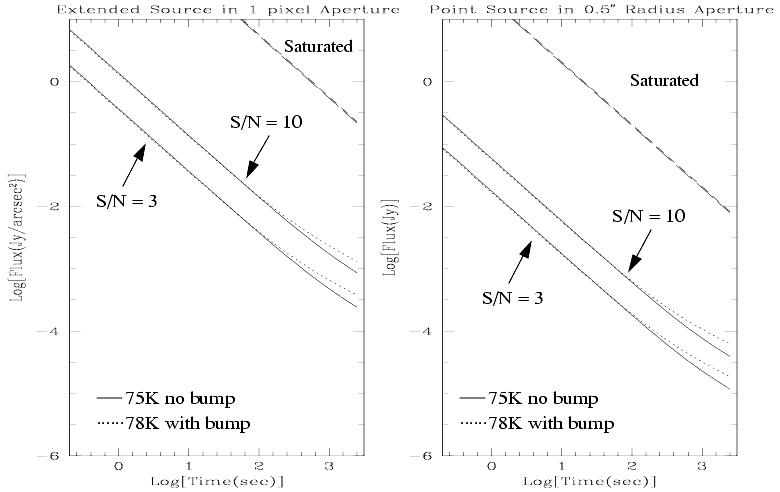

Figure A1.26: NIC1, F166N Sensitivity Curves

Notes: [Fe II] continuum. See also Camera 3, Filter F166N. Central wavelength: 1.6607 µm Mean wavelength: 1.6607 µm Peak wavelength: 1.6624 µm Wavelength range: 1% µm FWHM: 0.0170 µm Maximum throughput: 20.987% Central pixel fraction: 0.045	*Figure A1.25: NIC1, F166N Throughput*
*Figure A1.26: NIC1, F166N Sensitivity Curves*
