NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F165M

Notes:

Planetary continuum.

See also Camera 1, Filter F165M.

Central wavelength: 1.6510 µm

Mean wavelength: 1.6520 µm

Peak wavelength: 1.7135 µm

Wavelength range: 1.54-1.74 µm

FWHM: 0.1984 µm

Maximum throughput: 25.026%

Central pixel fraction: 0.127

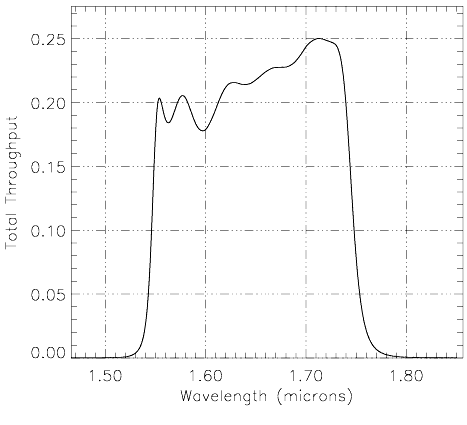

Figure A1.39: NIC2, F165M Throughput

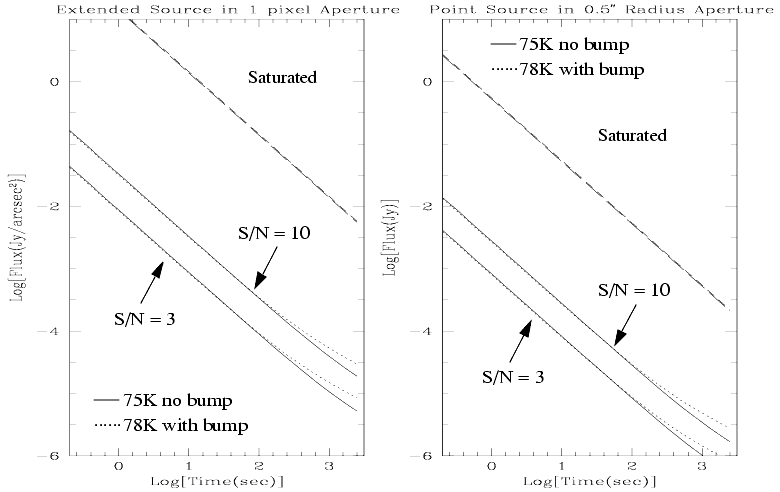

Figure A1.40: NIC2, F165M Sensitivity Curves

Notes: Planetary continuum. See also Camera 1, Filter F165M. Central wavelength: 1.6510 µm Mean wavelength: 1.6520 µm Peak wavelength: 1.7135 µm Wavelength range: 1.54-1.74 µm FWHM: 0.1984 µm Maximum throughput: 25.026% Central pixel fraction: 0.127	*Figure A1.39: NIC2, F165M Throughput*
*Figure A1.40: NIC2, F165M Sensitivity Curves*
