NICMOS Instrument Handbook for Cycle 11

Camera 1, Polarizer POL0S

Notes:

See Table 5.2 for characteristics of
polarizers POL120S and POL240S.

Central wavelength: 1.0574 µm

Mean wavelength: 1.0656 µm

Peak wavelength: 1.1435 µm

Wavelength range: 0.8-1.3

FWHM: 0.4458 µm

Maximum throughput: 5.735%

Central pixel fraction: 0.101

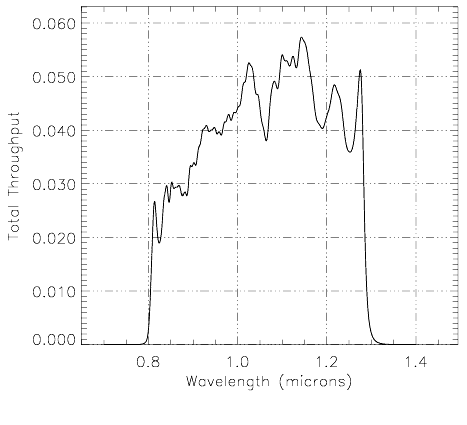

Figure A1.33: NIC1, Short Polarizer Throughput

Figure A1.34: NIC1, Short Polarizer Sensitivity Curves

Notes: See Table 5.2 for characteristics of polarizers POL120S and POL240S. Central wavelength: 1.0574 µm Mean wavelength: 1.0656 µm Peak wavelength: 1.1435 µm Wavelength range: 0.8-1.3 FWHM: 0.4458 µm Maximum throughput: 5.735% Central pixel fraction: 0.101	*Figure A1.33: NIC1, Short Polarizer Throughput*
*Figure A1.34: NIC1, Short Polarizer Sensitivity Curves*
