NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F110W

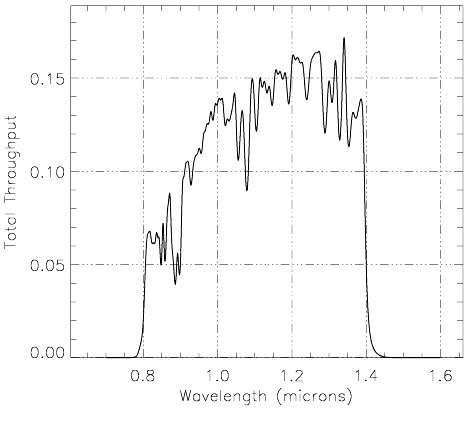

Notes: See also Camera 1, Filter F110W and Camera 3, Filter F110W. Central wavelength: 1.1238 µm Mean wavelength: 1.1355 µm Peak wavelength: 1.3404 µm Wavelength range: 0.8-1.4 µm FWHM: 0.5269 µm Maximum throughput: 17.167% Central pixel fraction: 0.235	Figure A1.35: NIC2, F110W Throughput

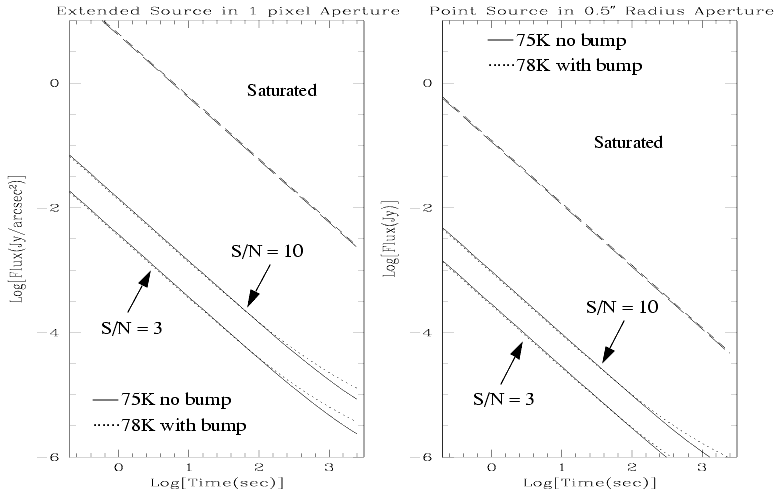

Figure A1.36: NIC2, F110W Sensitivity Curves



---
