NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F190N

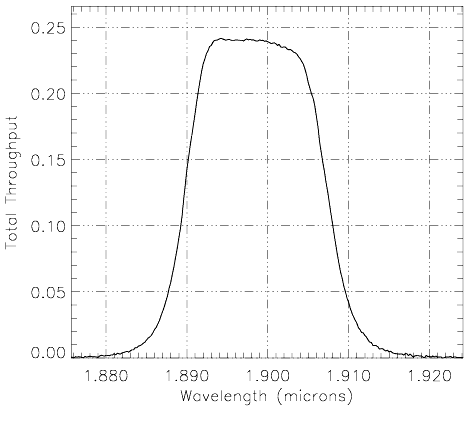

Notes: Paschen continuum. See also Camera 2, Filter F190N and Camera 3, Filter F190N. Central wavelength: 1.8986 µm Mean wavelength: 1.8986 µm Peak wavelength: 1.8942 µm Wavelength range: 1% FWHM: 0.0179 µm Maximum throughput: 24.155% Central pixel fraction: 0.035	Figure A1.31: NIC1, F190N Throughput

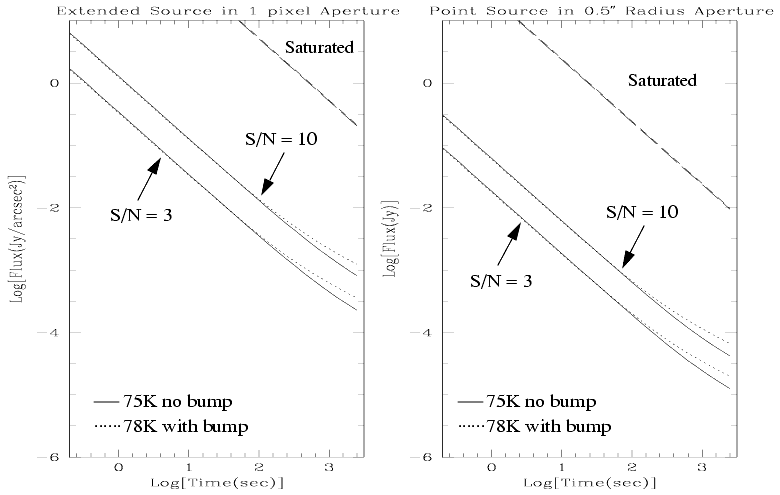

Figure A1.32: NIC1, F190N Sensitivity Curves



---
