NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F171M

Notes:

HCO₂ and C₂ continuum.

Central wavelength: 1.7211 µm

Mean wavelength: 1.7213 µm

Peak wavelength: 1.7258 µm

Wavelength range: 1.68-1.76 µm

FWHM: 0.0714 µm

Maximum throughput: 24.106%

Central pixel fraction: 0.119

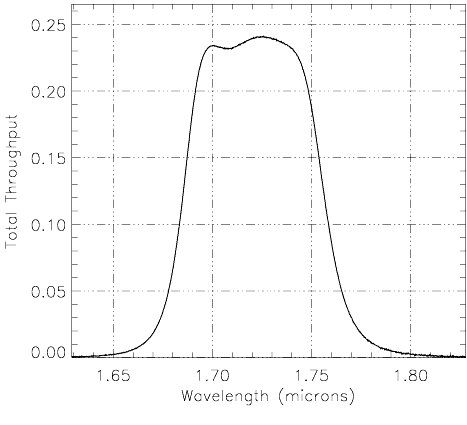

Figure A1.41: NIC2, F171M Throughput

Figure A1.42: NIC2, F171M Sensitivity Curves

Notes: HCO₂ and C₂ continuum. Central wavelength: 1.7211 µm Mean wavelength: 1.7213 µm Peak wavelength: 1.7258 µm Wavelength range: 1.68-1.76 µm FWHM: 0.0714 µm Maximum throughput: 24.106% Central pixel fraction: 0.119	*Figure A1.41: NIC2, F171M Throughput*
*Figure A1.42: NIC2, F171M Sensitivity Curves*
