NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F180M

Notes:

HCO₂ and C₂.

Thermal background important.

Central wavelength: 1.7970 µm

Mean wavelength: 1.7972 µm

Peak wavelength: 1.8132 µm

Wavelength range: 1.76-1.83 µm

FWHM: 0.0686 µm

Maximum throughput: 24.586%

Central pixel fraction: 0.110

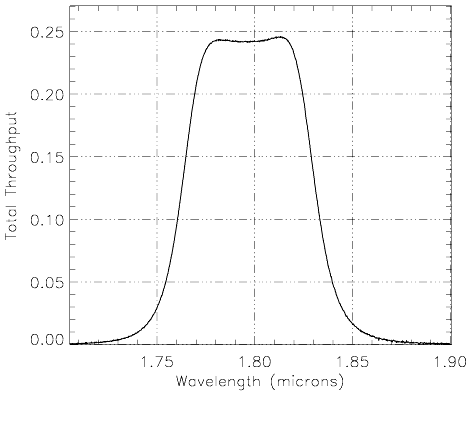

Figure A1.43: NIC2, F180M Throughput

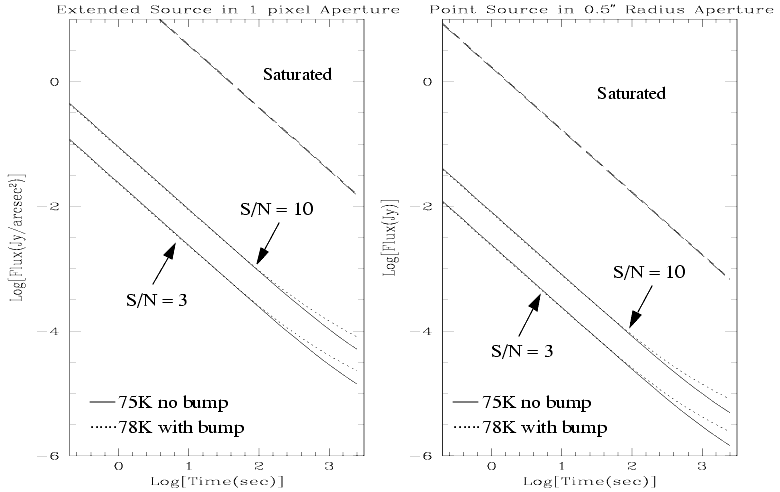

Figure A1.44: NIC2, F180M Sensitivity Curves

Notes: HCO₂ and C₂. Thermal background important. Central wavelength: 1.7970 µm Mean wavelength: 1.7972 µm Peak wavelength: 1.8132 µm Wavelength range: 1.76-1.83 µm FWHM: 0.0686 µm Maximum throughput: 24.586% Central pixel fraction: 0.110	*Figure A1.43: NIC2, F180M Throughput*
*Figure A1.44: NIC2, F180M Sensitivity Curves*
