NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F187N

Notes:

Paschen .

See also Camera 1, Filter F187N and
Camera 3, Filter F187N.

Central wavelength: 1.8740 µm

Mean wavelength: 1.8740 µm

Peak wavelength: 1.8746 µm

Wavelength range: 1%

FWHM: 0.0194 µm

Maximum throughput: 24.197%

Central pixel fraction: 0.102

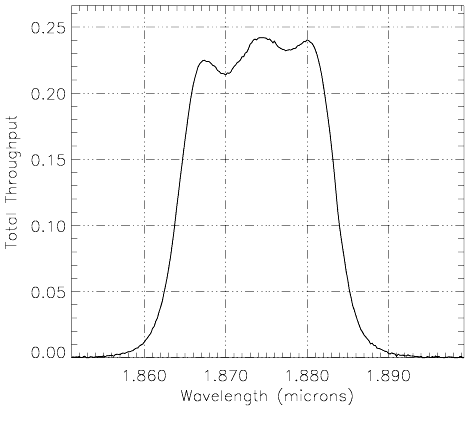

Figure A1.45: NIC2 F187N Throughput

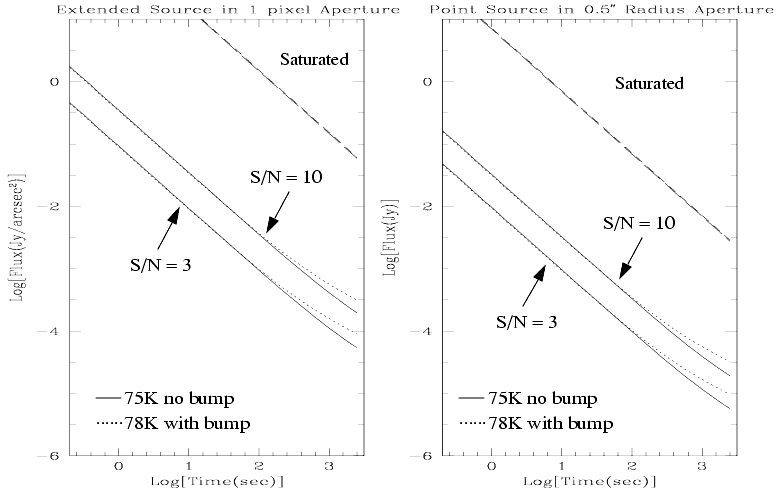

Figure A1.46: NIC2, F187N Sensitivity Curves

Notes: Paschen . See also Camera 1, Filter F187N and Camera 3, Filter F187N. Central wavelength: 1.8740 µm Mean wavelength: 1.8740 µm Peak wavelength: 1.8746 µm Wavelength range: 1% FWHM: 0.0194 µm Maximum throughput: 24.197% Central pixel fraction: 0.102	*Figure A1.45: NIC2 F187N Throughput*
*Figure A1.46: NIC2, F187N Sensitivity Curves*
