NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F187W

Notes:

Thermal Background important.

Central wavelength: 1.8707 µm

Mean wavelength: 1.8721 µm

Peak wavelength: 1.8930 µm

Wavelength range: 1.75-2.0 µm

FWHM: 0.2450 µm

Maximum throughput: 23.68%

Central pixel fraction: 0.103

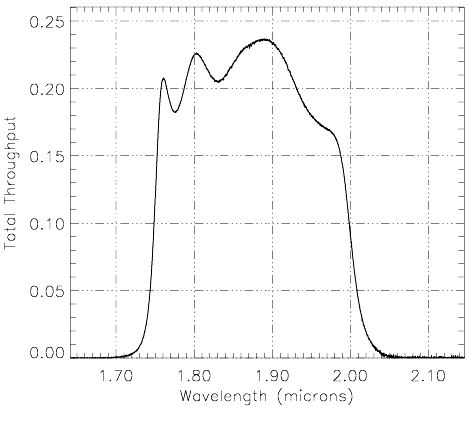

Figure A1.47: NIC2, F187W Throughput

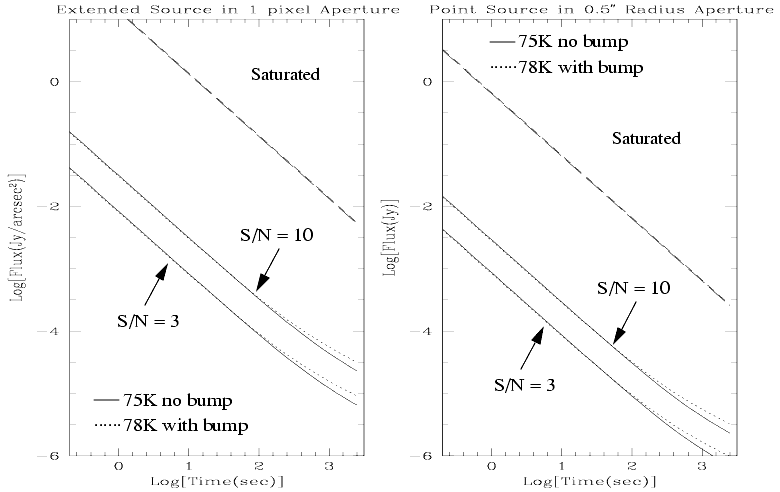

Figure A1.48: NIC2, F187W Sensitivity Curves

Notes: Thermal Background important. Central wavelength: 1.8707 µm Mean wavelength: 1.8721 µm Peak wavelength: 1.8930 µm Wavelength range: 1.75-2.0 µm FWHM: 0.2450 µm Maximum throughput: 23.68% Central pixel fraction: 0.103	*Figure A1.47: NIC2, F187W Throughput*
*Figure A1.48: NIC2, F187W Sensitivity Curves*
