NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F190N

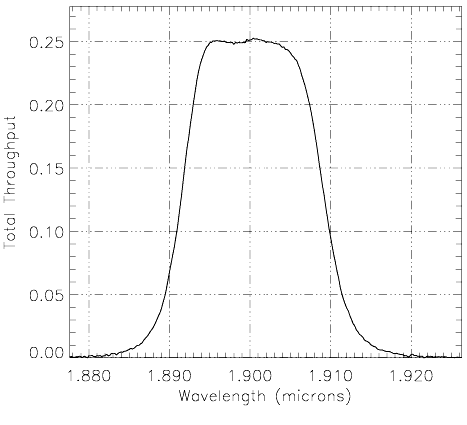

Notes: Paschen continuum. See also Camera 1, Filter F190N and Camera 3, Filter F190N, Central wavelength: 1.9003 µm Mean wavelength: 1.9003 µm Peak wavelength: 1.9004 µm Wavelength range: 1% FWHM: 0.0177 µm Maximum throughput: 25.264% Central pixel fraction: 0.100	Figure A1.49: NIC2, F190N Throughput

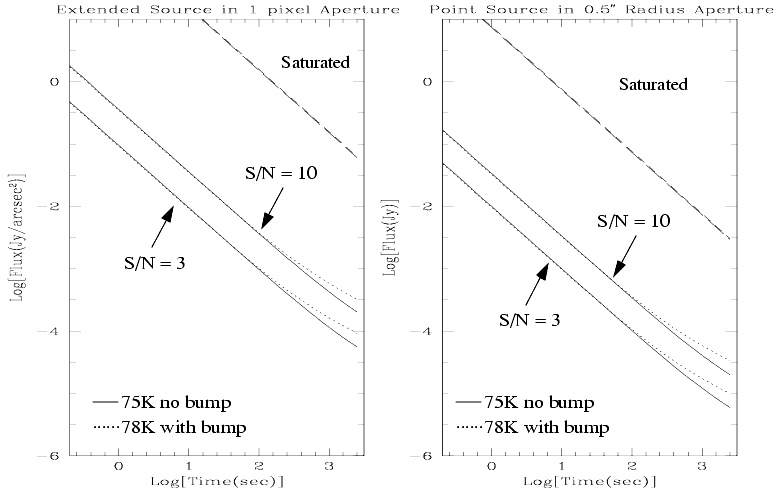

Figure A1.50: NIC2, F190N Sensitivity Curves



---
