NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F204M

Notes:

Methane band.

Thermal background important.

Central wavelength: 2.0352 µm

Mean wavelength: 2.0355 µm

Peak wavelength: 2.0634 µm

Wavelength range: 1.98-2.08 µm

FWHM: 0.1043 µm

Maximum throughput: 27.8%

Central pixel fraction: 0.089

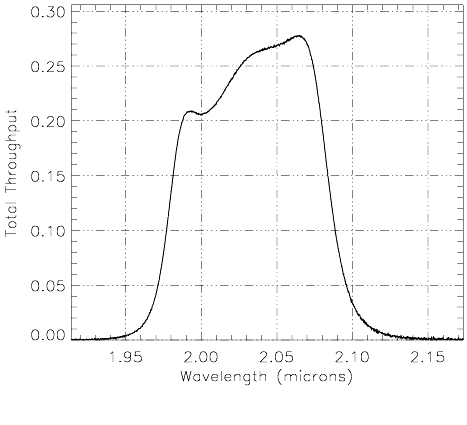

Figure A1.51: NIC2, F204M Throughput

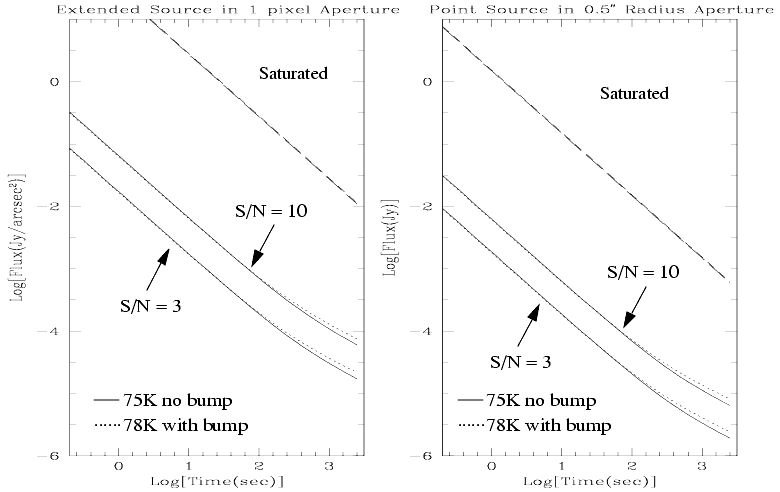

Figure A1.52: NIC2, F204M Sensitivity Curves

Notes: Methane band. Thermal background important. Central wavelength: 2.0352 µm Mean wavelength: 2.0355 µm Peak wavelength: 2.0634 µm Wavelength range: 1.98-2.08 µm FWHM: 0.1043 µm Maximum throughput: 27.8% Central pixel fraction: 0.089	*Figure A1.51: NIC2, F204M Throughput*
*Figure A1.52: NIC2, F204M Sensitivity Curves*
