NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F097N

Notes:

[S III] continuum.

Central wavelength: 0.9715 µm

Mean wavelength: 0.9715 µm

Peak wavelength: 0.9740 µm

Wavelength range: 1%

FWHM: 0.0097 µm

Maximum throughput: 7.806%

Central pixel fraction: 0.111

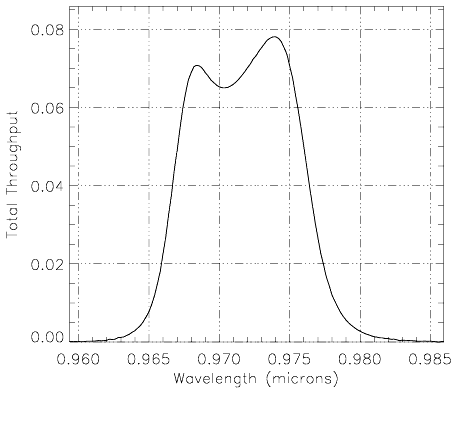

Figure A1.5: F097N Throughput

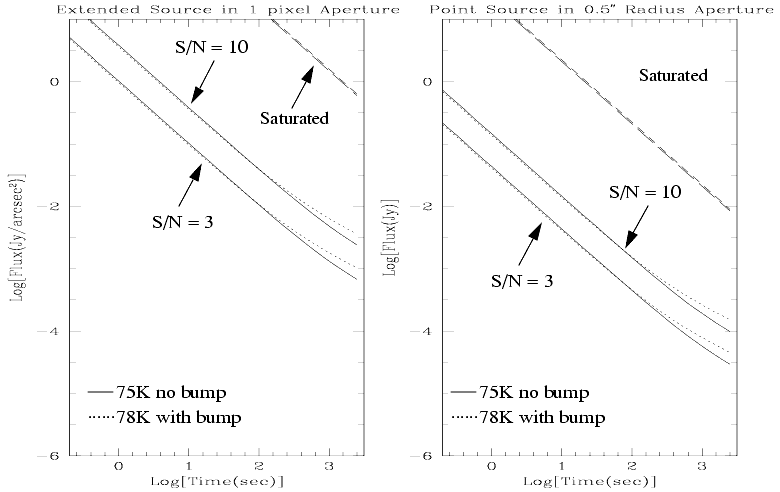

Figure A1.6: NIC1, F097N Sensitivity Curves

Notes: [S III] continuum. Central wavelength: 0.9715 µm Mean wavelength: 0.9715 µm Peak wavelength: 0.9740 µm Wavelength range: 1% FWHM: 0.0097 µm Maximum throughput: 7.806% Central pixel fraction: 0.111	*Figure A1.5: F097N Throughput*
*Figure A1.6: NIC1, F097N Sensitivity Curves*
