NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F222M

Notes:

CO continuum.

Thermal background important.

See also Camera 3, Filter F222M.

Central wavelength: 2.2176 µm

Mean wavelength: 2.2182 µm

Peak wavelength: 2.1866 µm

Wavelength range: 2.15-2.29 µm

FWHM: 0.1453 µm

Maximum throughput: 27.596%

Central pixel fraction: 0.076

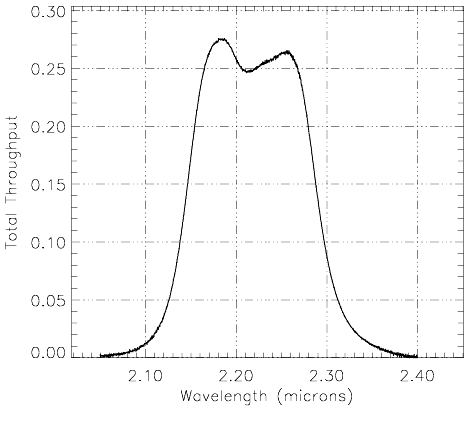

Figure A1.63: NIC2, F222M Throughput

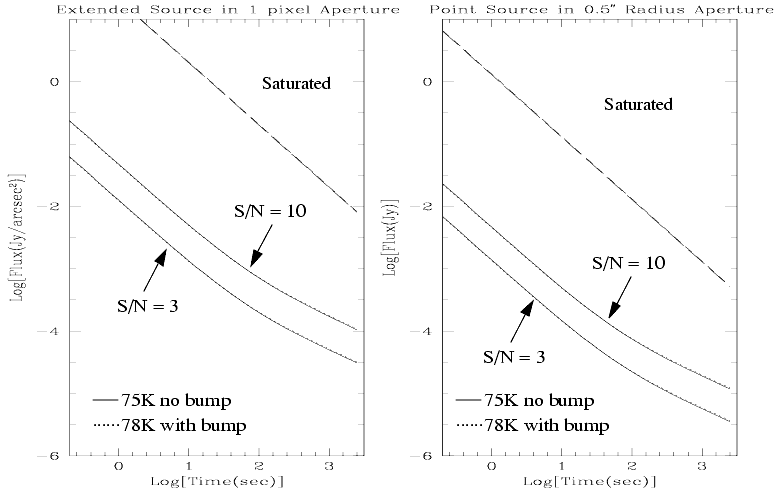

Figure A1.64: Sensitivity Curves

Notes: CO continuum. Thermal background important. See also Camera 3, Filter F222M. Central wavelength: 2.2176 µm Mean wavelength: 2.2182 µm Peak wavelength: 2.1866 µm Wavelength range: 2.15-2.29 µm FWHM: 0.1453 µm Maximum throughput: 27.596% Central pixel fraction: 0.076	*Figure A1.63: NIC2, F222M Throughput*
*Figure A1.64: Sensitivity Curves*
