NICMOS Instrument Handbook for Cycle 11

Camera 2, Polarizer POL0L

Notes:

See Table 5.2 for characteristics of
POL120L and POL240L.

Central wavelength: 1.9999 µm

Mean wavelength: 2.0009 µm

Peak wavelength: 2.0750 µm

Wavelength range: 1.89-2.1 µm

FWHM: 0.2014 µm

Maximum throughput: 15.286%

Central pixel fraction: 0.092

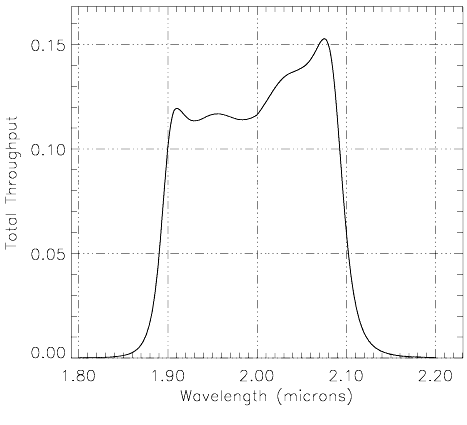

Figure A1.67: NIC2, Long Polarizer Throughput

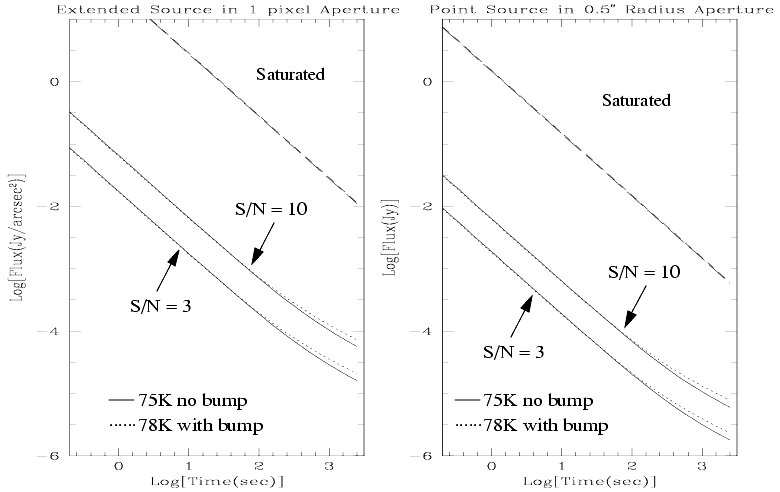

Figure A1.68: NIC2, Long Polarizer Sensitivity Curves

Notes: See Table 5.2 for characteristics of POL120L and POL240L. Central wavelength: 1.9999 µm Mean wavelength: 2.0009 µm Peak wavelength: 2.0750 µm Wavelength range: 1.89-2.1 µm FWHM: 0.2014 µm Maximum throughput: 15.286% Central pixel fraction: 0.092	*Figure A1.67: NIC2, Long Polarizer Throughput*
*Figure A1.68: NIC2, Long Polarizer Sensitivity Curves*
