NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F237M

Notes:

CO.

Thermal background important.

See also Camera 3, Filter F240M.

Central wavelength: 2.3692 µm

Mean wavelength: 2.3696 µm

Peak wavelength: 2.4338 µm

Wavelength range: 2.29-2.44 µm

FWHM: 0.1540 µm

Maximum throughput: 33.896%

Central pixel fraction: 0.068

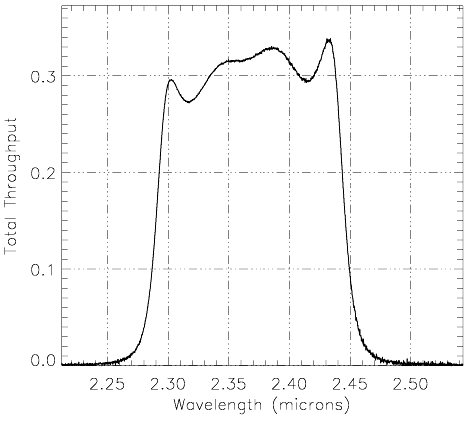

Figure A1.65: NIC2, F237M Throughput

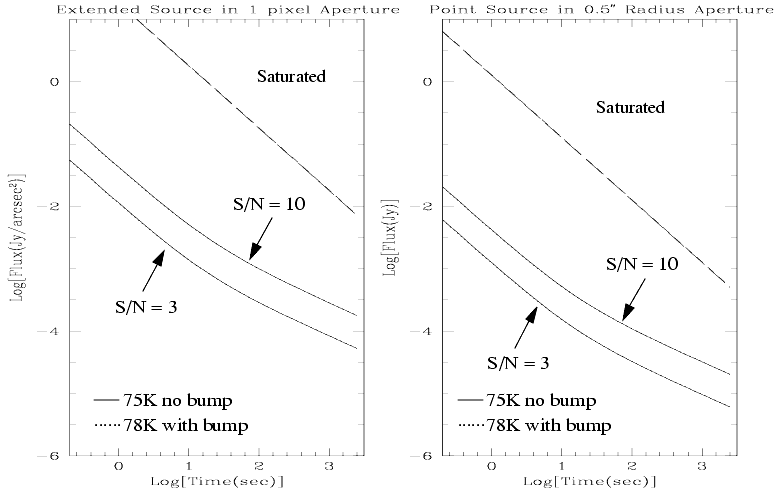

Figure A1.66: NIC2, F237M Sensitivity Curves

Notes: CO. Thermal background important. See also Camera 3, Filter F240M. Central wavelength: 2.3692 µm Mean wavelength: 2.3696 µm Peak wavelength: 2.4338 µm Wavelength range: 2.29-2.44 µm FWHM: 0.1540 µm Maximum throughput: 33.896% Central pixel fraction: 0.068	*Figure A1.65: NIC2, F237M Throughput*
*Figure A1.66: NIC2, F237M Sensitivity Curves*
