NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F108N

Notes:

[He I] line.

See also Camera 1, Filter F108N.

Central wavelength: 1.0799 µm

Mean wavelength: 1.0800 µm

Peak wavelength: 1.0776 µm

Wavelength range: 1%

FWHM: 0.0100 µm

Maximum throughput: 9.470%

Central pixel fraction: 0.485

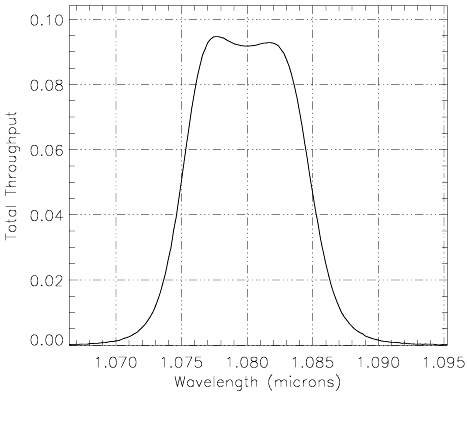

Figure A1.69: NIC3, F108N Throughput

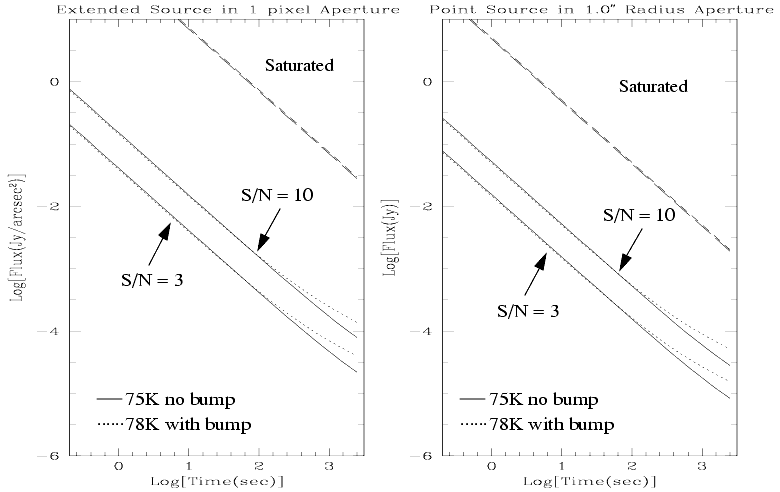

Figure A1.70: NIC3, F108N Sensitivity Curves

Notes: [He I] line. See also Camera 1, Filter F108N. Central wavelength: 1.0799 µm Mean wavelength: 1.0800 µm Peak wavelength: 1.0776 µm Wavelength range: 1% FWHM: 0.0100 µm Maximum throughput: 9.470% Central pixel fraction: 0.485	*Figure A1.69: NIC3, F108N Throughput*
*Figure A1.70: NIC3, F108N Sensitivity Curves*
