NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F150W

Notes:

Grism B continuum.

Thermal background important.

Central wavelength: 1.5371 µm

Mean wavelength: 1.5548 µm

Peak wavelength: 1.7675 µm

Wavelength range: 1.1-1.9 µm

FWHM: 0.7512 µm

Maximum throughput: 24.845%

Central pixel fraction: 0.475

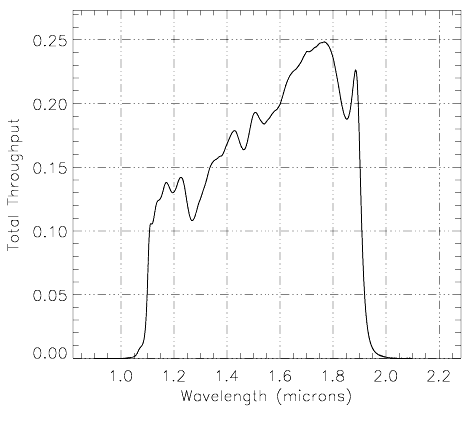

Figure A1.75: NIC3, F150W Throughput

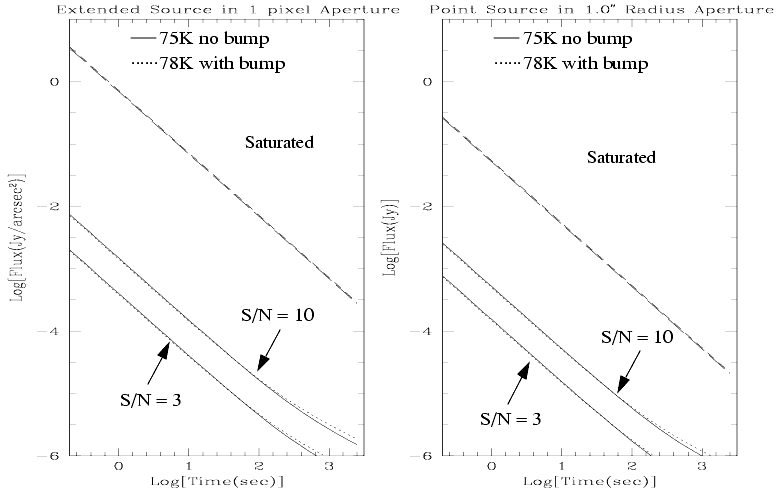

Figure A1.76: NIC3, F150W Sensitivity Curves

Notes: Grism B continuum. Thermal background important. Central wavelength: 1.5371 µm Mean wavelength: 1.5548 µm Peak wavelength: 1.7675 µm Wavelength range: 1.1-1.9 µm FWHM: 0.7512 µm Maximum throughput: 24.845% Central pixel fraction: 0.475	*Figure A1.75: NIC3, F150W Throughput*
*Figure A1.76: NIC3, F150W Sensitivity Curves*
