NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F160W

Notes:

Minimum background.

See also Camera 1, Filter F160W and
Camera 2, Filter F160W.

Central wavelength: 1.6048 µm

Mean wavelength: 1.6090 µm

Peak wavelength: 1.7725 µm

Wavelength range: 1.4-1.8 µm

FWHM: 0.3983 µm

Maximum throughput: 23.761%

Central pixel fraction: 0.474

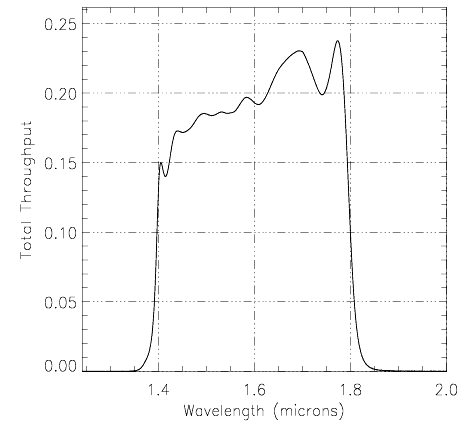

Figure A1.77: NIC3, F160W Throughput

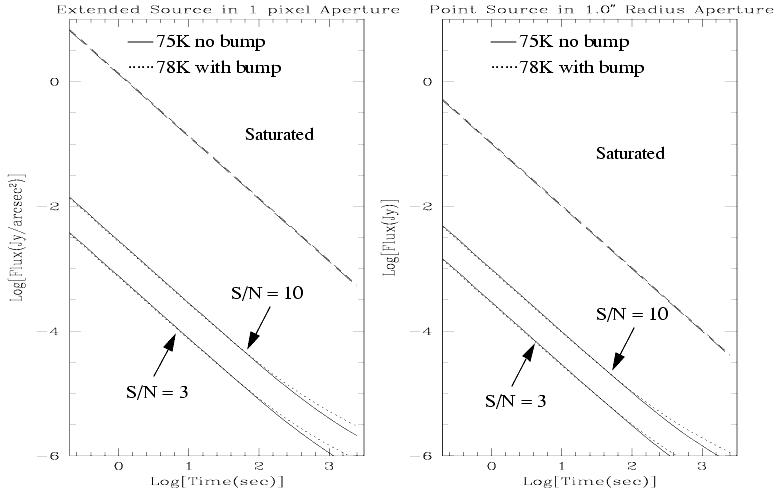

Figure A1.78: NIC3, F160W Sensitivity Curves

Notes: Minimum background. See also Camera 1, Filter F160W and Camera 2, Filter F160W. Central wavelength: 1.6048 µm Mean wavelength: 1.6090 µm Peak wavelength: 1.7725 µm Wavelength range: 1.4-1.8 µm FWHM: 0.3983 µm Maximum throughput: 23.761% Central pixel fraction: 0.474	*Figure A1.77: NIC3, F160W Throughput*
*Figure A1.78: NIC3, F160W Sensitivity Curves*
