NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F113N

Notes:

[He I] continuum.

See also Camera 1, Filter F113N.

Central wavelength: 1.1284 µm

Mean wavelength: 1.1284 µm

Peak wavelength: 1.1316 µm

Wavelength range: 1%

FWHM: 0.0114 µm

Maximum throughput: 11.256%

Central pixel fraction: 0.485

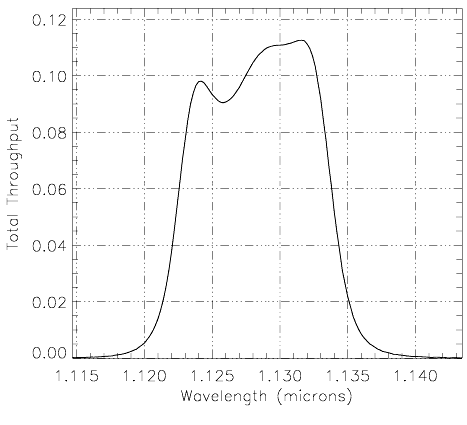

Figure A1.73: NIC3, F113N Throughput

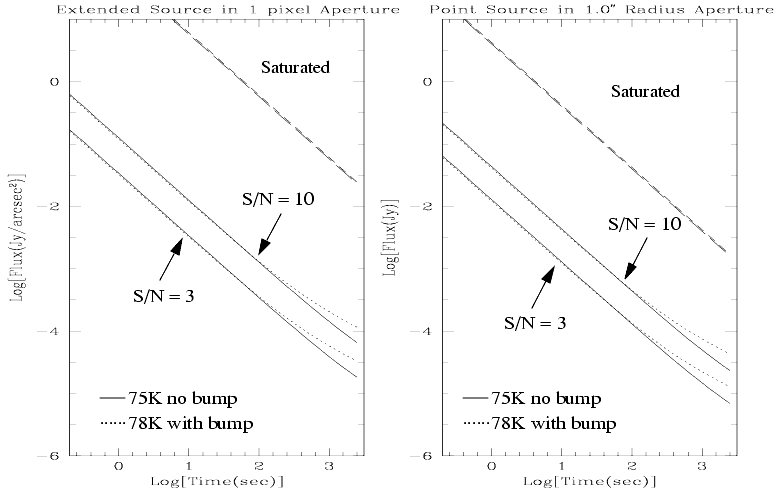

Figure A1.74: NIC3, F113N Sensitivity Curves

Notes: [He I] continuum. See also Camera 1, Filter F113N. Central wavelength: 1.1284 µm Mean wavelength: 1.1284 µm Peak wavelength: 1.1316 µm Wavelength range: 1% FWHM: 0.0114 µm Maximum throughput: 11.256% Central pixel fraction: 0.485	*Figure A1.73: NIC3, F113N Throughput*
*Figure A1.74: NIC3, F113N Sensitivity Curves*
