NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F108N

Notes:

[He I] line.

See also Camera 3, Filter F108N

Central wavelength: 1.0816 µm

Mean wavelength: 1.0816 µm

Peak wavelength: 1.0790 µm

Wavelength range: 1%

FWHM: 0.0099 µm

Maximum throughput: 9.425%

Central pixel fraction: 0.094

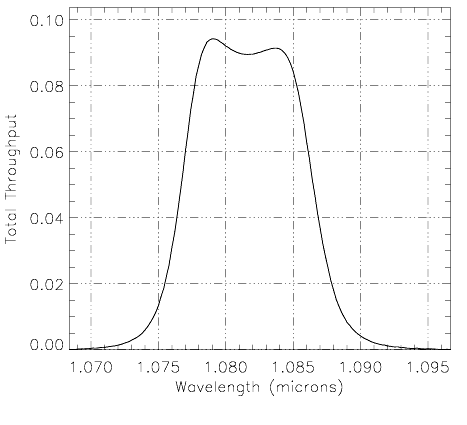

Figure A1.7: NIC1, F108N Throughput

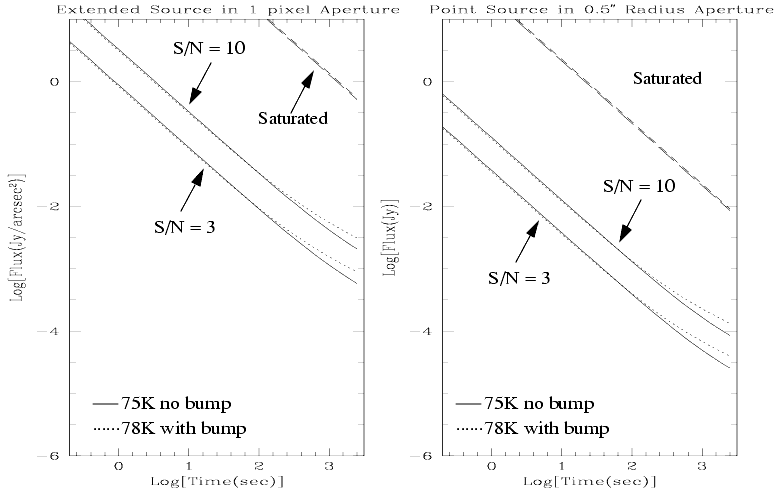

Figure A1.8: NIC1, F108N Sensitivity Curves

Notes: [He I] line. See also Camera 3, Filter F108N Central wavelength: 1.0816 µm Mean wavelength: 1.0816 µm Peak wavelength: 1.0790 µm Wavelength range: 1% FWHM: 0.0099 µm Maximum throughput: 9.425% Central pixel fraction: 0.094	*Figure A1.7: NIC1, F108N Throughput*
*Figure A1.8: NIC1, F108N Sensitivity Curves*
