NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F164N

Notes:

[Fe II] line.

See also Camera 1, Filter F164N.

Central wavelength: 1.6460 µm

Mean wavelength: 1.6460 µm

Peak wavelength: 1.6476 µm

Wavelength range: 1%

FWHM: 0.0173 µm

Maximum throughput: 20.41%

Central pixel fraction: 0.471

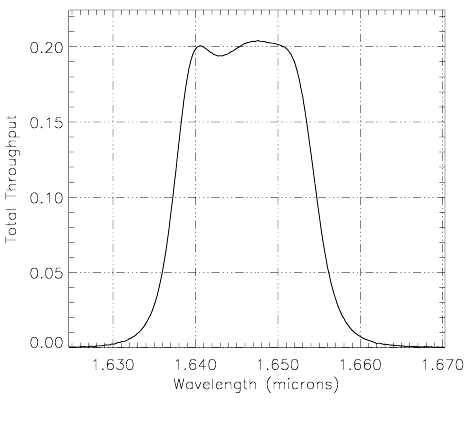

Figure A1.79: NIC3, F164N Throughput

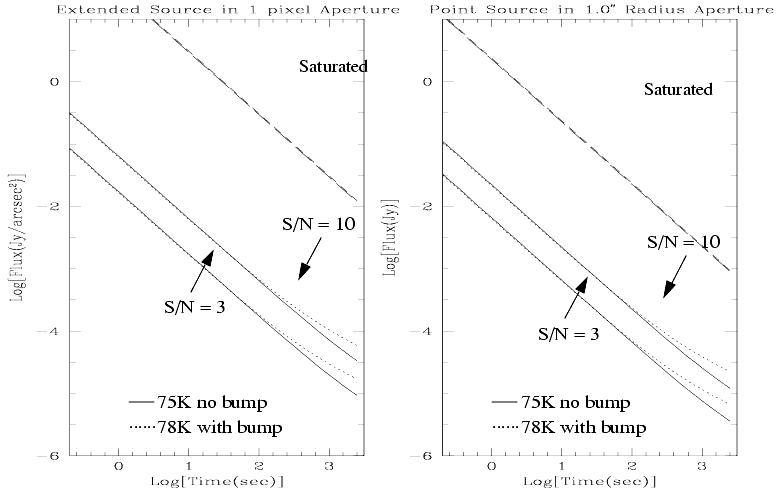

Figure A1.80: NIC3, F164N Sensitivity Curves

Notes: [Fe II] line. See also Camera 1, Filter F164N. Central wavelength: 1.6460 µm Mean wavelength: 1.6460 µm Peak wavelength: 1.6476 µm Wavelength range: 1% FWHM: 0.0173 µm Maximum throughput: 20.41% Central pixel fraction: 0.471	*Figure A1.79: NIC3, F164N Throughput*
*Figure A1.80: NIC3, F164N Sensitivity Curves*
