NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F166N

Notes:

[Fe II] continuum.

See also Camera 1, Filter F166N.

Central wavelength: 1.6583 µm

Mean wavelength: 1.6583 µm

Peak wavelength: 1.6602 µm

Wavelength range: 1%

FWHM: 0.0169 µm

Maximum throughput: 20.616%

Central pixel fraction: 0.469

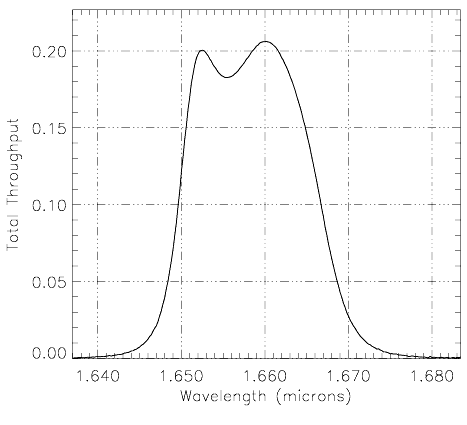

Figure A1.81: NIC3, F166N Throughput

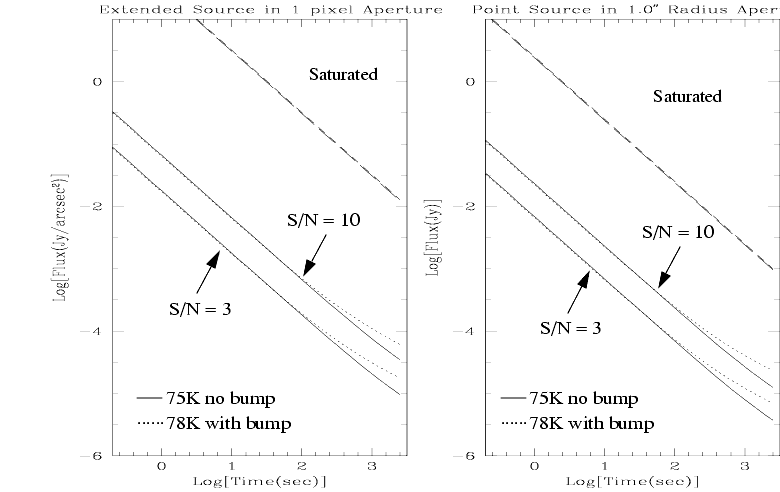

Figure A1.82: NIC3, F166N Sensitivity Curves

Notes: [Fe II] continuum. See also Camera 1, Filter F166N. Central wavelength: 1.6583 µm Mean wavelength: 1.6583 µm Peak wavelength: 1.6602 µm Wavelength range: 1% FWHM: 0.0169 µm Maximum throughput: 20.616% Central pixel fraction: 0.469	*Figure A1.81: NIC3, F166N Throughput*
*Figure A1.82: NIC3, F166N Sensitivity Curves*
