NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F175W

Notes:

Thermal background important.

Central wavelength: 1.8142 µm

Mean wavelength: 1.8424 µm

Peak wavelength: 2.2835 µm

Wavelength range: 1.2-2.3 µm

FWHM: 0.7919 µm

Maximum throughput: 33.97%

Central pixel fraction: 0.448

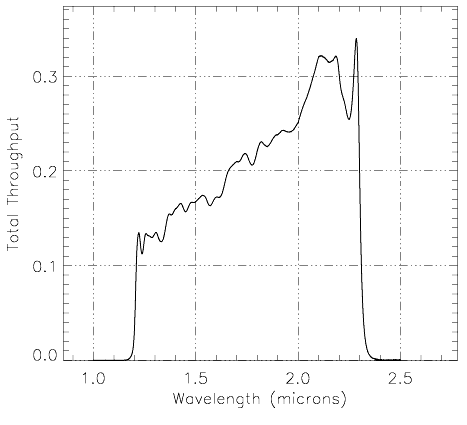

Figure A1.83: NIC3, F175W Throughput

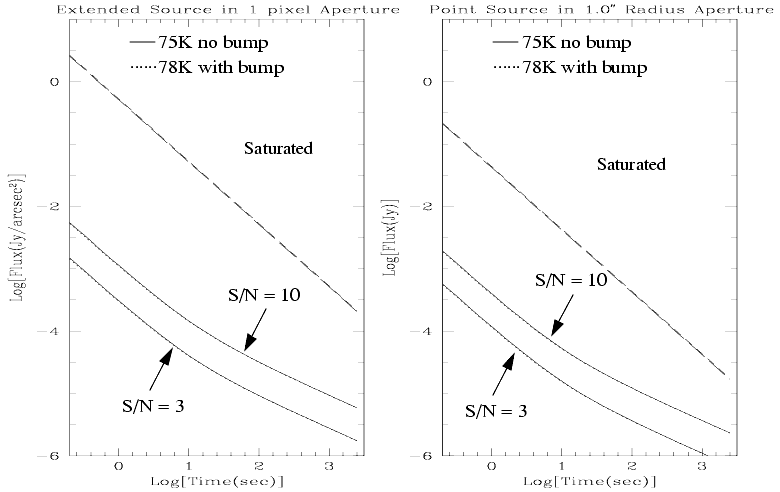

Figure A1.84: NIC3, F175W Sensitivity Curves

Notes: Thermal background important. Central wavelength: 1.8142 µm Mean wavelength: 1.8424 µm Peak wavelength: 2.2835 µm Wavelength range: 1.2-2.3 µm FWHM: 0.7919 µm Maximum throughput: 33.97% Central pixel fraction: 0.448	*Figure A1.83: NIC3, F175W Throughput*
*Figure A1.84: NIC3, F175W Sensitivity Curves*
