NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F187N

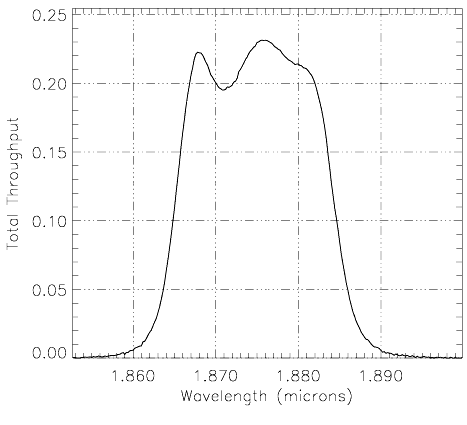

Notes: Paschen line. See also Camera 1, Filter F187N and Camera 2, Filter F187N. Central wavelength: 1.8748 µm Mean wavelength: 1.8748 µm Peak wavelength: 1.8756 µm Wavelength range: 1% FWHM: 0.0191 µm Maximum throughput: 23.131% Central pixel fraction: 0.438	Figure A1.85: NIC3, F187N Throughput

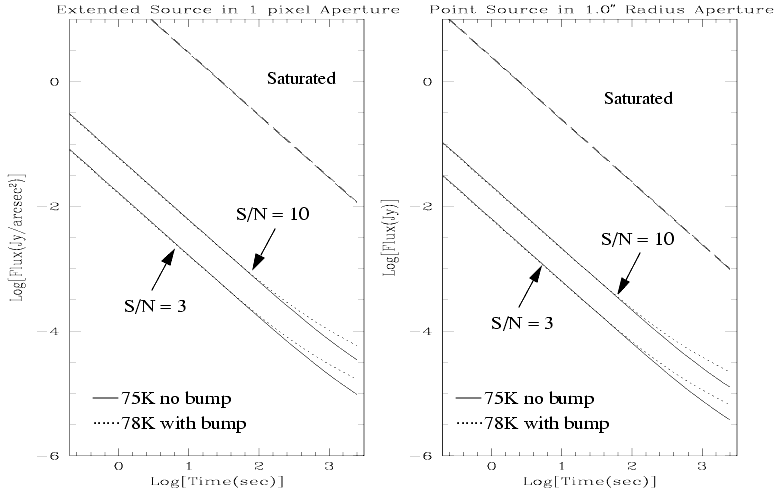

Figure A1.86: NIC3, F187N Sensitivity Curves



---
