NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F190N

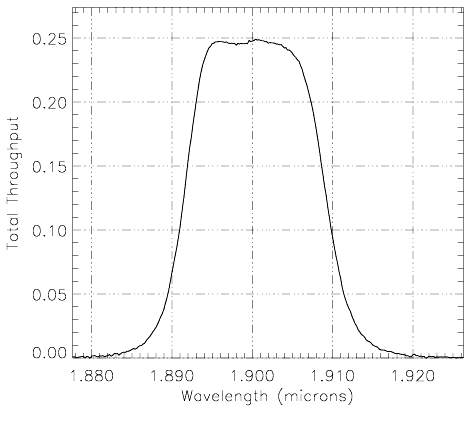

Notes: Paschen continuum. See also Camera 1, Filter F190N and Camera 2, Filter F190N. Central wavelength: 1.9003 µm Mean wavelength: 1.9004 µm Peak wavelength: 1.9004 µm Wavelength range: 1% FWHM: 0.0177 µm Maximum throughput: 24.907% Central pixel fraction: 0.434	Figure A1.87: NIC3, F190N Throughput

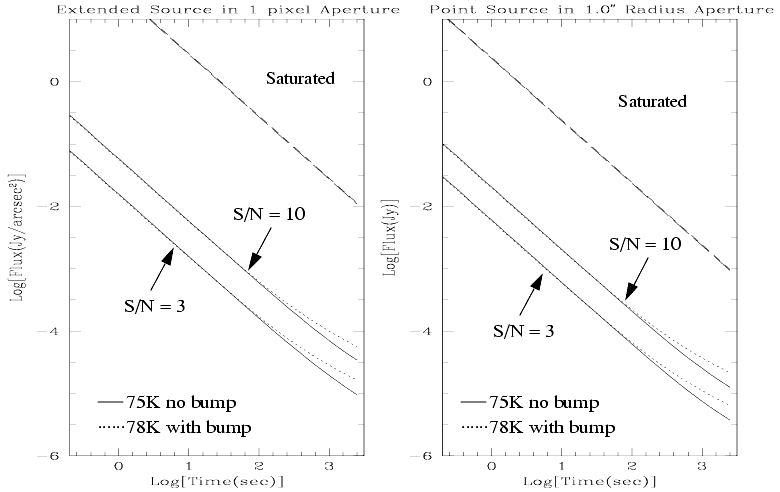

Figure A1.88: NIC3, F190N Sensitivity Curves



---
