NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F215N

Notes:

H₂ continuum.

Thermal background important.

See also Camera 2, Filter F215N.

Central wavelength: 2.1487 µm

Mean wavelength: 2.1487 µm

Peak wavelength: 2.1562 µm

Wavelength range: 1%

FWHM: 0.0202 µm

Maximum throughput: 25.273%

Central pixel fraction: 0.391

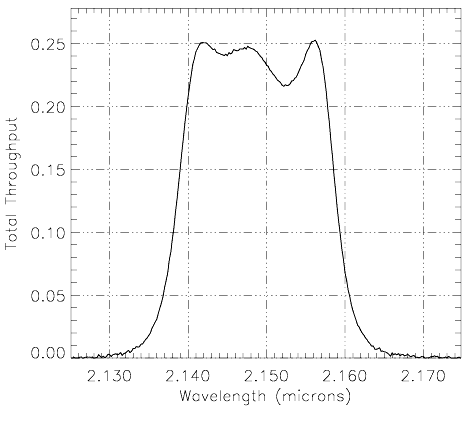

Figure A1.95: NIC3, F215N Throughput

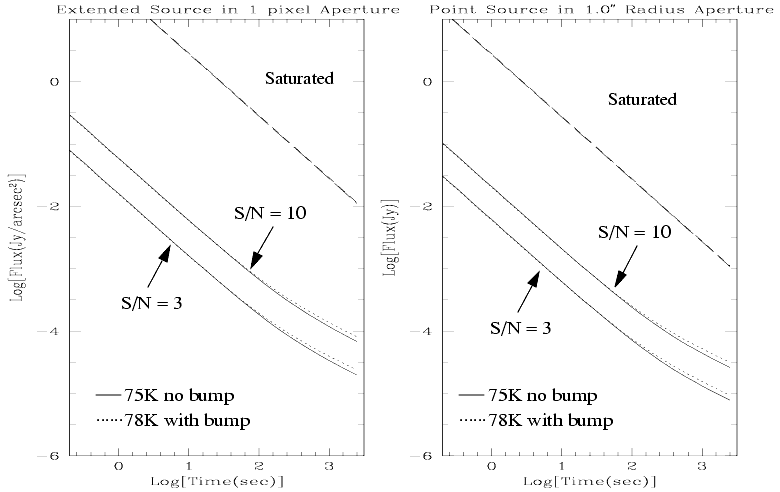

Figure A1.96: NIC3, F215N Sensitivity Curves

Notes: H₂ continuum. Thermal background important. See also Camera 2, Filter F215N. Central wavelength: 2.1487 µm Mean wavelength: 2.1487 µm Peak wavelength: 2.1562 µm Wavelength range: 1% FWHM: 0.0202 µm Maximum throughput: 25.273% Central pixel fraction: 0.391	*Figure A1.95: NIC3, F215N Throughput*
*Figure A1.96: NIC3, F215N Sensitivity Curves*
