NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F110M

Notes:

See also Camera 1, Filter F110W.

Central wavelength: 1.1020 µm

Mean wavelength: 1.1036 µm

Peak wavelength: 1.1295 µm

Wavelength range: 1.0-1.2 µm

FWHM: 0.1981 µm

Maximum throughput: 12.111%

Central pixel fraction: 0.092

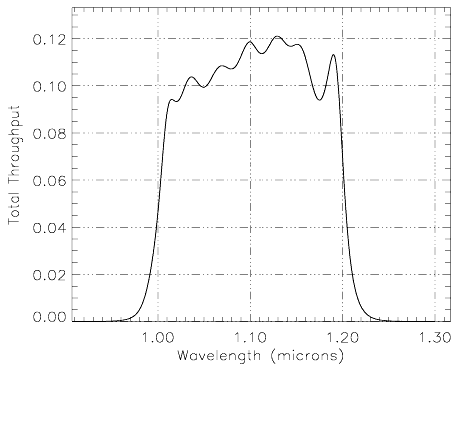

Figure A1.9: NIC1, F110M Throughput

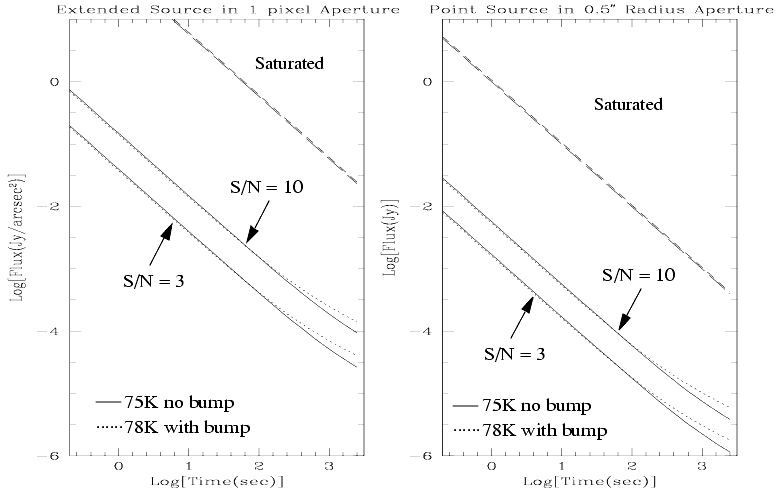

Figure A1.10: NIC1, F110M Sensitivity Curves

Notes: See also Camera 1, Filter F110W. Central wavelength: 1.1020 µm Mean wavelength: 1.1036 µm Peak wavelength: 1.1295 µm Wavelength range: 1.0-1.2 µm FWHM: 0.1981 µm Maximum throughput: 12.111% Central pixel fraction: 0.092	*Figure A1.9: NIC1, F110M Throughput*
*Figure A1.10: NIC1, F110M Sensitivity Curves*
