NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F110W

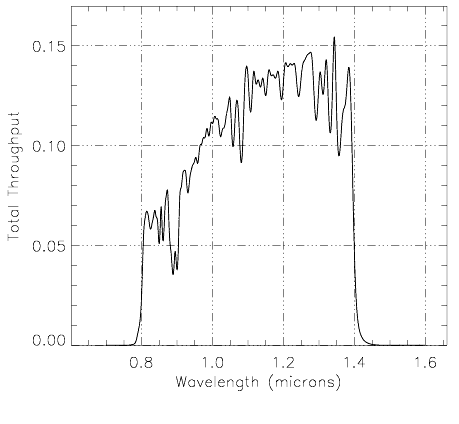

Notes: See also Camera 2, Filter F110W and Camera 3, Filter F110W. Central wavelength: 1.1248 µm Mean wavelength: 1.1368 µm Peak wavelength: 1.3430 µm Wavelength range: 0.8-1.4 µm FWHM: 0.5245 µm Maximum throughput: 15.422% Central pixel fraction: 0.095	Figure A1.11: NIC1, F110W Throughput

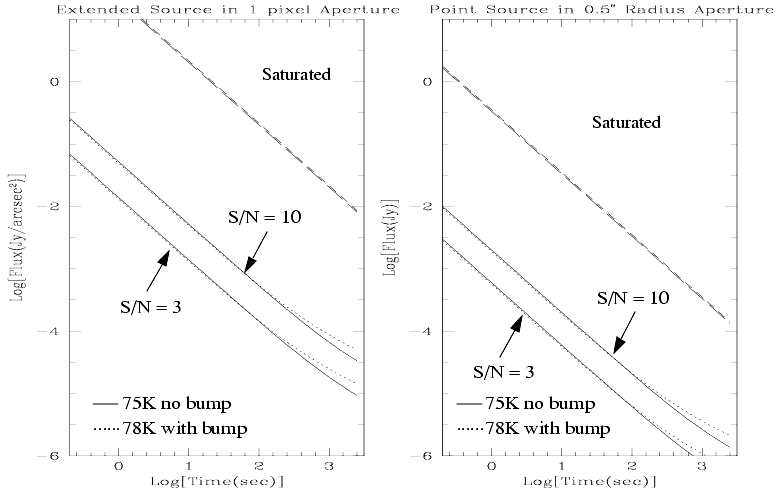

Figure A1.12: NIC1, F110W Sensitivity Curves



---
