NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F113N

Notes:

[He I] continuum.

See also Camera 3, Filter F113N.

Central wavelength: 1.1298 µm

Mean wavelength: 1.1298 µm

Peak wavelength: 1.1312 µm

Wavelength range: 1%

FWHM: 0.0113 µm

Maximum throughput: 11.027%

Central pixel fraction: 0.088

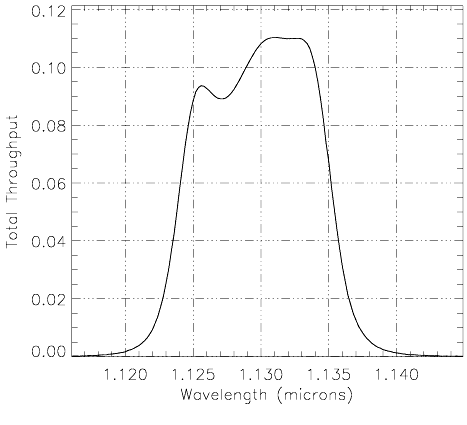

Figure A1.13: NIC1, F113N Throughput

Figure A1.14: NIC1, F113N Sensitivity Curves

Notes: [He I] continuum. See also Camera 3, Filter F113N. Central wavelength: 1.1298 µm Mean wavelength: 1.1298 µm Peak wavelength: 1.1312 µm Wavelength range: 1% FWHM: 0.0113 µm Maximum throughput: 11.027% Central pixel fraction: 0.088	*Figure A1.13: NIC1, F113N Throughput*
*Figure A1.14: NIC1, F113N Sensitivity Curves*
