NICMOS Instrument Handbook for Cycle 11

Camera 2, Filter F160W

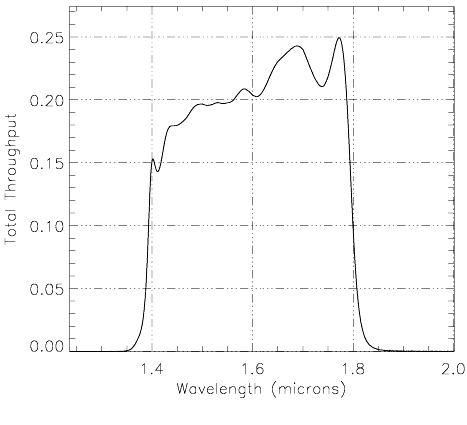

Notes: Minimum background. See also Camera 1, Filter F160W and Camera 3, Filter F160W. Central wavelength: 1.6034 µm Mean wavelength: 1.6077 µm Peak wavelength: 1.7720 µm Wavelength range: 1.4-1.8 µm FWHM: 0.4011 µm Maximum throughput: 24.95% Central pixel fraction: 0.136	Figure A1.37: NIC2, F160W Throughput

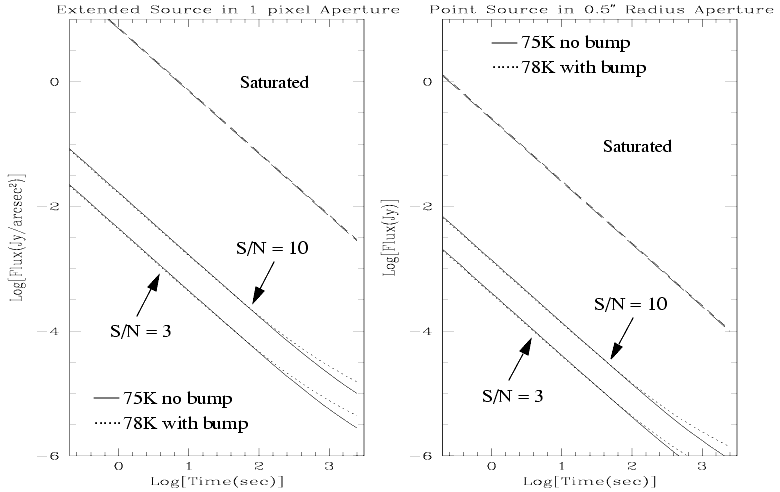

Figure A1.38: NIC2, F160W Sensitivity Curves



---
