NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F170M

Notes:

See also Camera 2, Filter F171M.

Central wavelength: 1.7061 µm

Mean wavelength: 1.7071 µm

Peak wavelength: 1.7885µm

Wavelength range: 1.6-1.8 µm

FWHM: 0.2023 µm

Maximum throughput: 24.183%

Central pixel fraction: 0.043

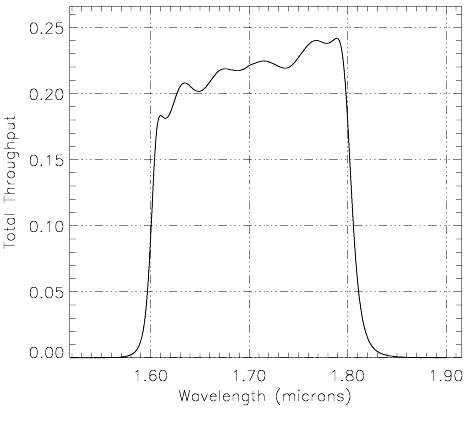

Figure A1.27: NIC1, F170M Throughput

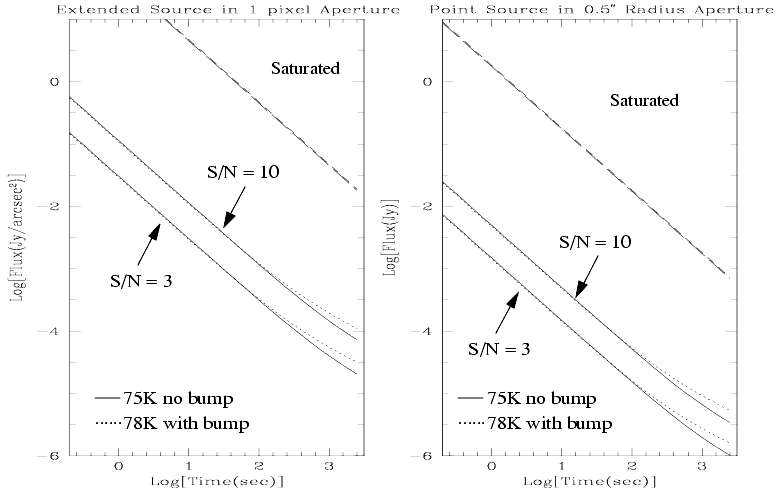

Figure A1.28: NIC1, F170M Sensitivity Curves

Notes: See also Camera 2, Filter F171M. Central wavelength: 1.7061 µm Mean wavelength: 1.7071 µm Peak wavelength: 1.7885µm Wavelength range: 1.6-1.8 µm FWHM: 0.2023 µm Maximum throughput: 24.183% Central pixel fraction: 0.043	*Figure A1.27: NIC1, F170M Throughput*
*Figure A1.28: NIC1, F170M Sensitivity Curves*
