NICMOS Instrument Handbook for Cycle 11

Camera 1, Filter F187N

Notes:

Paschen .

See also Camera 2, Filter F187N and
Camera 3, Filter F187N.

Central wavelength: 1.8748 µm

Mean wavelength: 1.8748 µm

Peak wavelength: 1.8756 µm

Wavelength range: 1%

FWHM: 0.0191 µm

Maximum throughput: 23.608%

Central pixel fraction: 0.036
Figure A1.29: NIC1, F187N Throughput

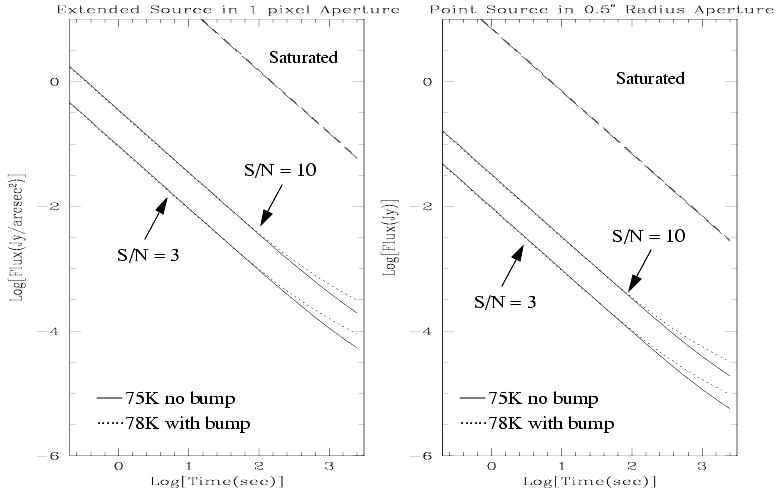

Figure A1.30: NIC1, F187N Sensitivity Curves

Notes: Paschen . See also Camera 2, Filter F187N and Camera 3, Filter F187N. Central wavelength: 1.8748 µm Mean wavelength: 1.8748 µm Peak wavelength: 1.8756 µm Wavelength range: 1% FWHM: 0.0191 µm Maximum throughput: 23.608% Central pixel fraction: 0.036	*Figure A1.29: NIC1, F187N Throughput*
*Figure A1.30: NIC1, F187N Sensitivity Curves*
