NICMOS Instrument Handbook for Cycle 11

Camera 3, Filter F110W

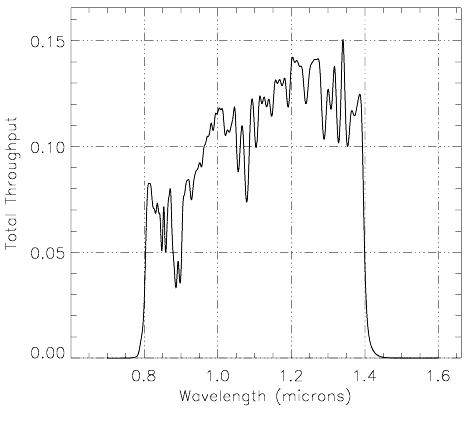

Notes: See also Camera 1, Filter F110W and Camera 2, Filter F110W. Central wavelength: 1.1207 µm Mean wavelength: 1.1333 µm Peak wavelength: 1.3404 µm Wavelength range: 0.8-1.4 µm FWHM: 0.5880 µm Maximum throughput: 15.054% Central pixel fraction: 0.496	Figure A1.71: NIC3, F110W Throughput

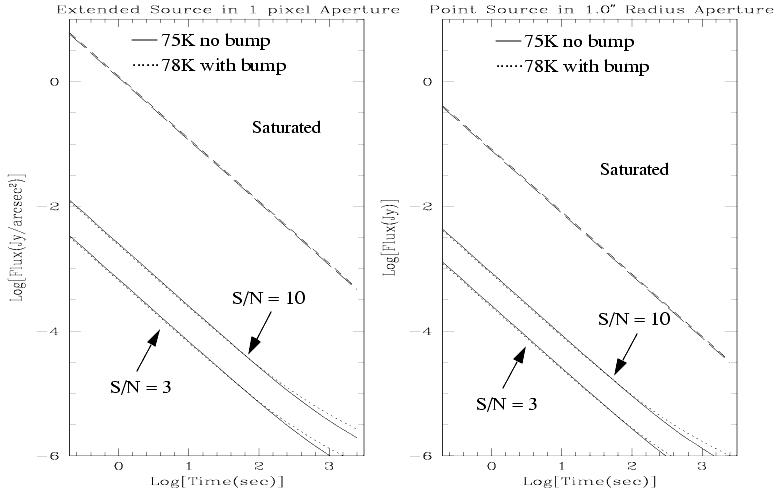

Figure A1.72: NIC3, F110W Sensitivity Curves



---
